Service Access Cover Removal (Model 6E4)
To remove the service access cover, do the following:
1. Remove the Model 6E4’s outer side cover as described in “Outer Side Cover Removal (Model 6E4)”
on page 435.
2. Loosen the three captive thumbscrews located on the rear of the cover. See the following illustration
for thumbscrew locations.
3. Slide the cover toward the rear of the system drawer. After the front of the service access cover has
cleared the front chassis ledge, lift the cover out of the system.
Attention: For proper cooling and airflow, replace the cover before turning on the system. Operating the
system for extended periods of time (over 30 minutes) with the cover removed might damage the system
components.

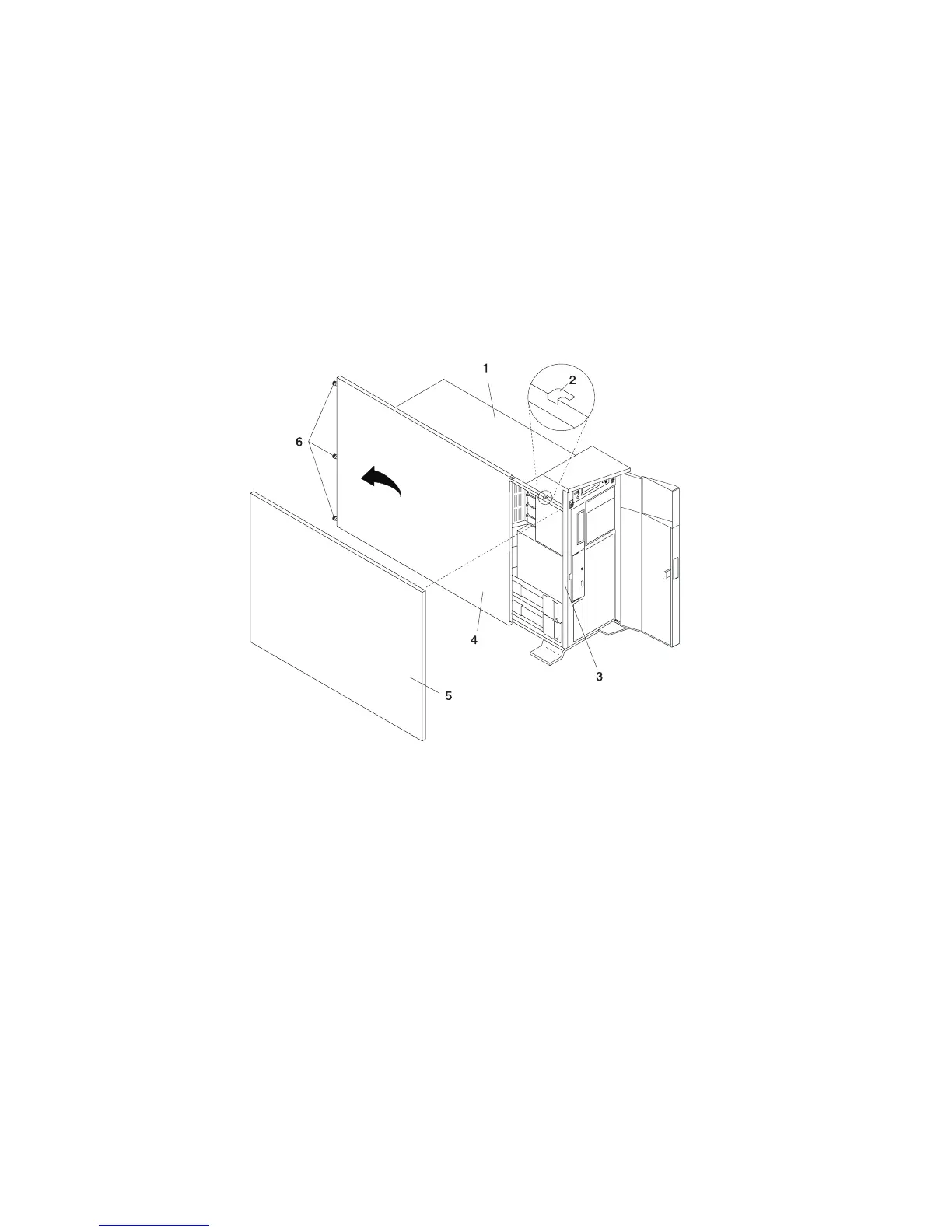

1 Model 6E4 4 Service Access Cover
2 Service Access Cover Locking Tab 5 Outer Side Cover
3 Front Chassis Ledge 6 Thumbscrews
436 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
