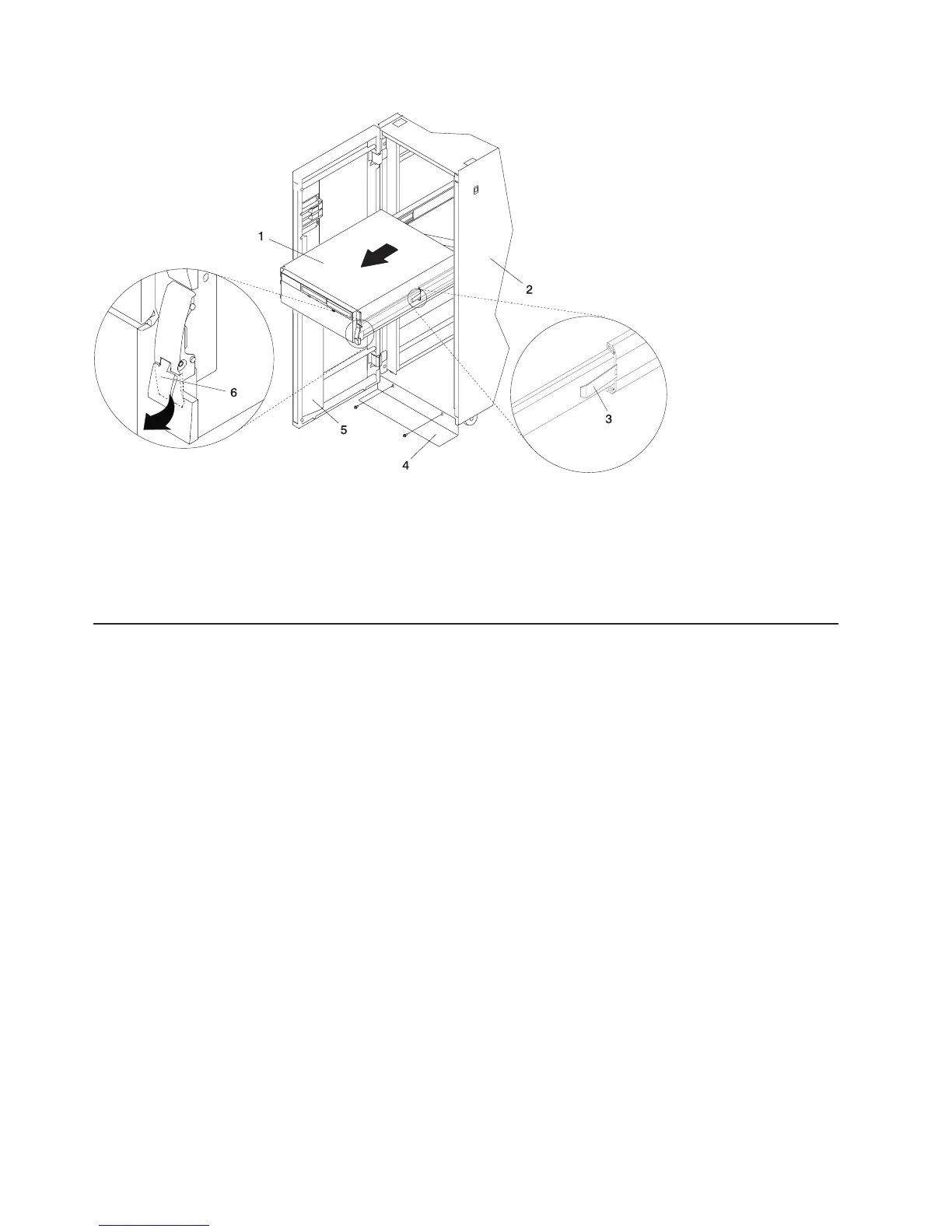

1 Model 6C4 4 Stabilizing Bar
2 19-Inch Rack 5 Front Rack Door
3 Extension Rail Safety Release Tab 6 System Drawer-Release Latch
After completing the service actions, return the system to the operating position.
Returning the Model 6C4 to the Operating Position
To return the Model 6C4 to the operating position, do the following:
1. Press in on both spring-loaded release tabs, located on each rail. See the illustration on page 430 for
the location of the release tabs.
2. Ensure the system drawer-release latches, located on the system drawer, are in the open position. See
the illustration on page 430 for the location of the system drawer-release latches.
3. Push the system drawer straight back into the rack until both system drawer-release latches have
locked into position.
4. If you removed two thumbscrews from the bezel front, replace them at this time.
5. Close the front rack door.
430 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
