Outer Side Cover Removal (Model 6E4)
To remove the outer side cover, do the following:
1. Loosen the thumbscrew on the rear of the cover. See the following illustration for the thumbscrew
location.
2. Slide the cover toward the rear of the system to release the four locking tab slots located on the top
flange of the outer side cover.
3. Grasp the top back corner of the outer side cover.
4. Pull out the top edge of the outer side cover.
Note: The top edge of the outer side cover must be clear of the top cover.
5. Pull up to release the bottom edge of the outer side cover.
6. Put the cover in a safe place.

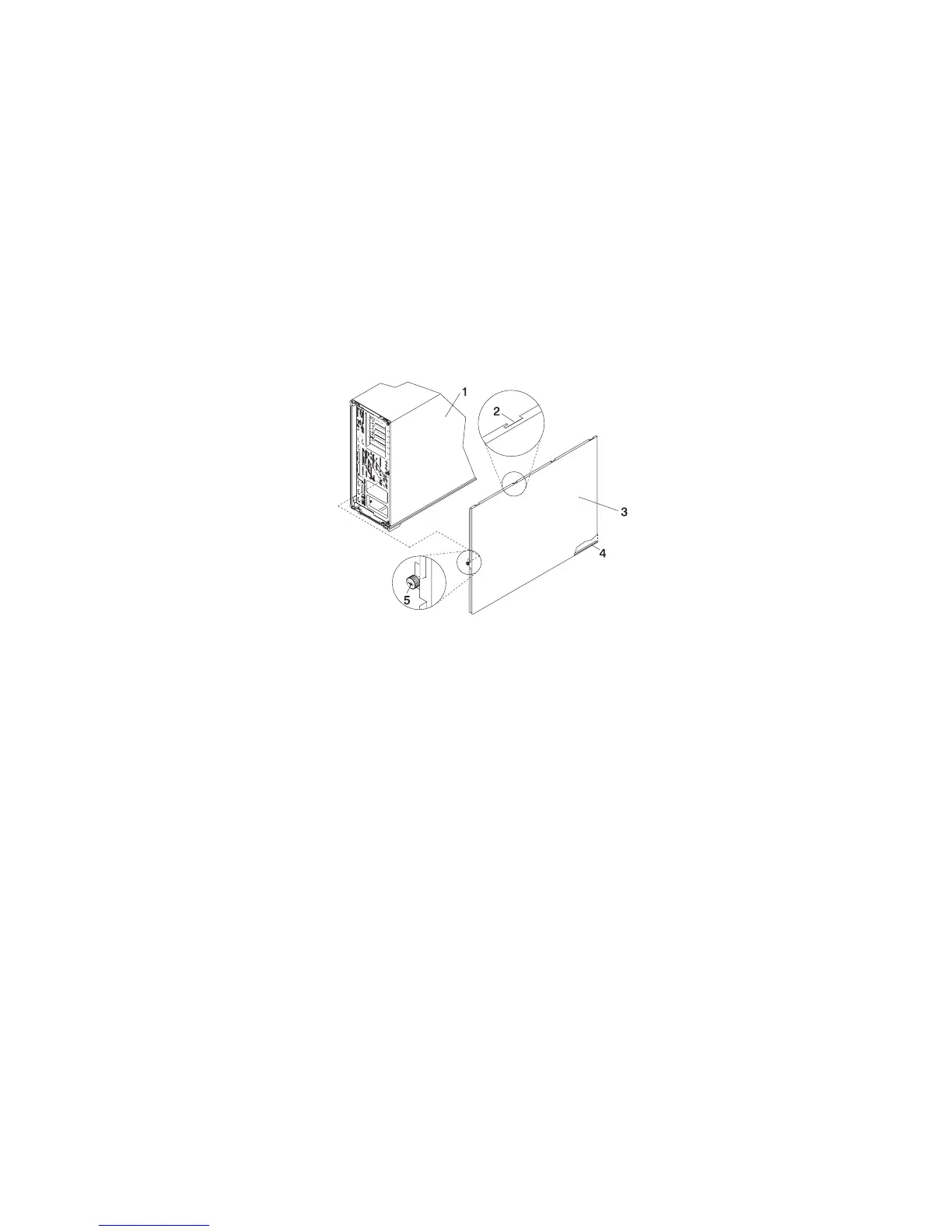

1 Model 6E4 4 Cover Retaining Slot
2 Locking Tab Slot for Outer Side Cover 5 Thumbscrew
3 Outer Side Cover
Outer Side Cover Replacement (Model 6E4)
To replace the outer side cover, do the following:
1. Place the bottom edge retaining slot of the outer side cover over the outer edge of the system base.
2. Pivot the outer side cover up toward the top of the system.
3. Align the four top locking tab slots, located on the outer side cover, with the locking tabs, located on
the bottom side of the top cover.
4. Push the cover in. When correctly seated, push the outer side cover forward, toward the front of the
chassis. The four top locking tabs are now locked in place.
5. Align the thumbscrew, located on the rear of the outer side cover, with the screw hole located on the
back of the chassis.
6. Tighten the thumbscrew.
Chapter 9. Removal and Replacement Procedures 435
