Front Bezel Removal (Model 6E4)

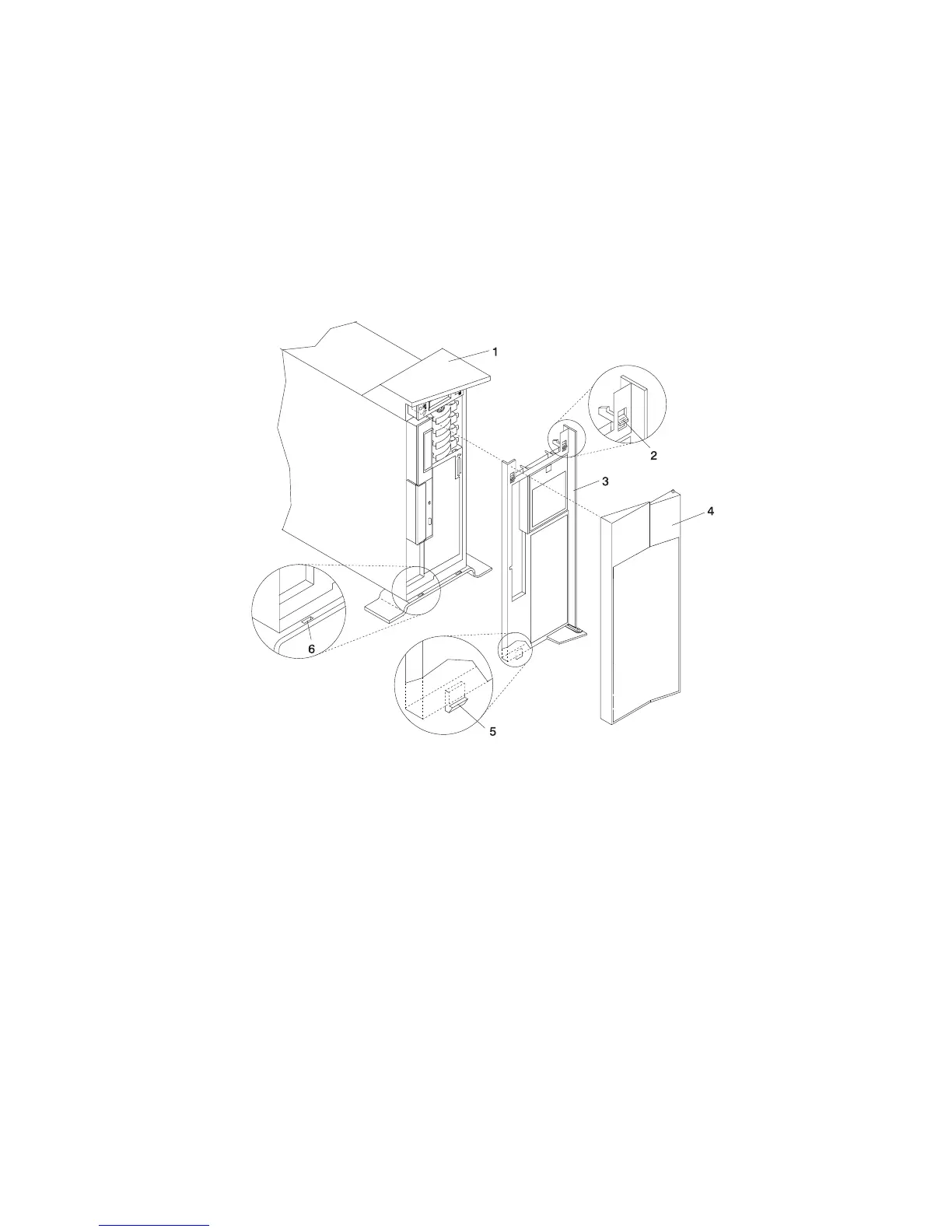

Refer to the following illustrations while you perform the steps in this procedure.
To remove the front bezel, do the following:
1. Remove the bezel door as described in “Bezel Door (Model 6E4)” on page 441.
2. Press down on the two bezel-release levers.
3. Pull the top of the bezel out and away from the system chassis.
4. Gently pull the bezel up off the base, releasing the lower bezel locking tabs.
5. Put the bezel and bezel door in a safe place.
1 Model 6E4 4 Front Door
2 Bezel-release lever 5 Lower Bezel Locking Tab (Quantity 2)
3 Front Bezel 6 Lower Bezel Retaining Slots (Quantity 2)
Front Bezel Replacement (Model 6E4)
To replace the front bezel, do the following:
1. Place the two lower bezel locking tabs into the retaining slots located on the chassis base.
2. Rotate the bezel up toward the top of the chassis, ensuring that the aligning pins are aligned with their
mating holes located on the chassis.
3. Gently push the bezel in until the two bezel release levers are seated in their respective slots.
4. Replace the bezel door as described in “Bezel Door (Model 6E4)” on page 441.
