Connect the Cables
Use the following steps to connect the cables to your HMC. Look for the small icons on the back of your
HMC that show where to attach the keyboard, mouse and display cables.

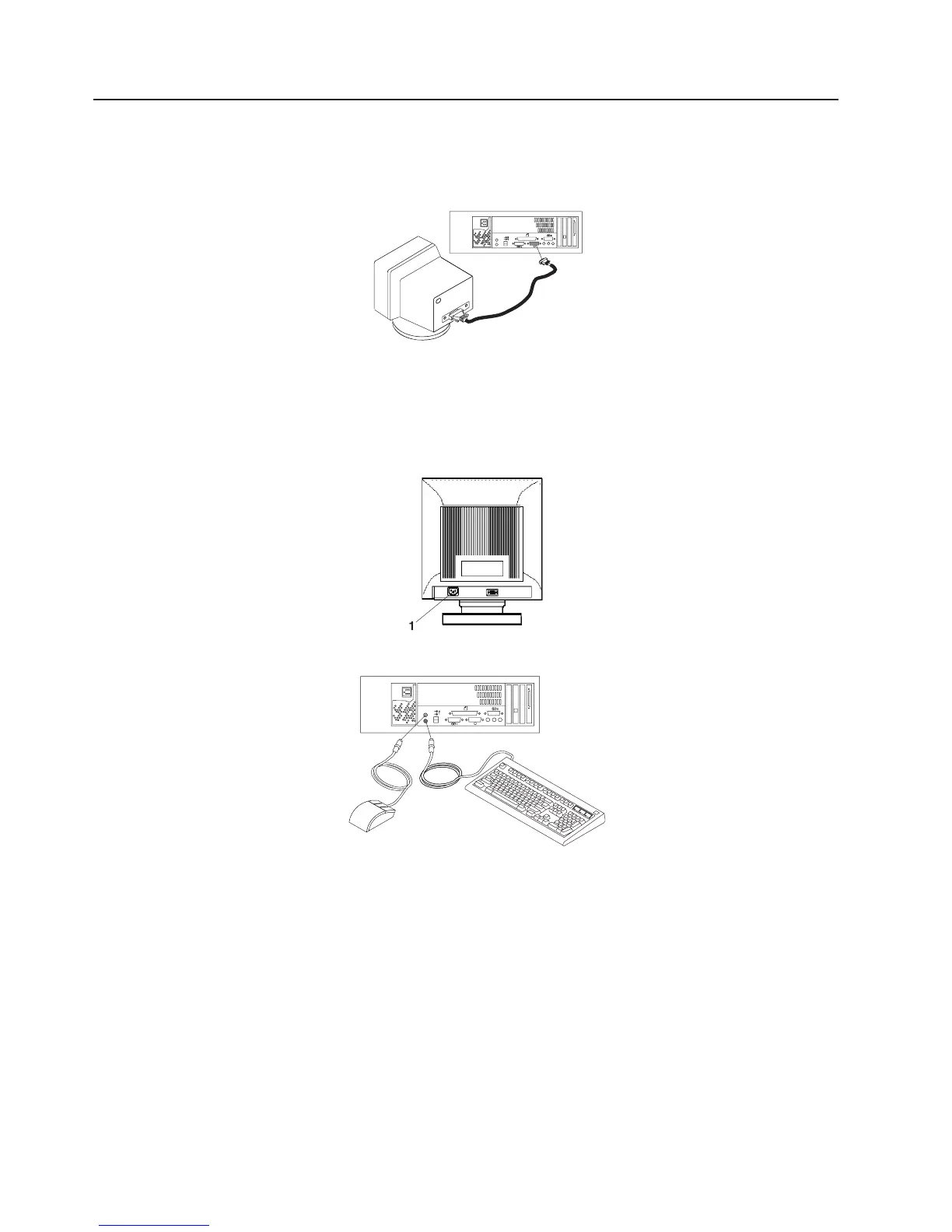

1. Attach the monitor cable to the monitor connector and tighten the screws.
2. If a label for the monitor was shipped with your system, attach the label to the bottom-right corner of
the monitor.
3. Attach the power cables to the monitor as shown in the following illustration. If the HMC has a voltage
switch, ensure that it is in the correct position for the supply voltage.
Attention: Do not plug the power cables into an electrical outlet at this point.
4. Connect the mouse and keyboard to their connectors, as shown in the following illustration.
588 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
