Service Access Cover Replacement (Model 6E4)
To replace the service access cover, do the following:
1. Align the service access cover with the side of the system, about 25 mm (1 inch) from the front of the
system. The flanges on the top and bottom of the cover wrap around the system chassis.
2. Hold the service access cover against the system drawer and slide it toward the front of the system.
The front edge of the service access cover slides beneath the chassis ledge.
3. Tighten the three thumbscrews located on the rear of the cover.
Back Cover Removal (Model 6E4)
To remove the back cover, do the following:
1. Grasp each side of the back cover and pull straight up and then away from the system. This action
releases the two top and two bottom tabs that secure the cover to the back of the system. See the
following illustration for the tab locations.
2. Put the back cover in a safe place.

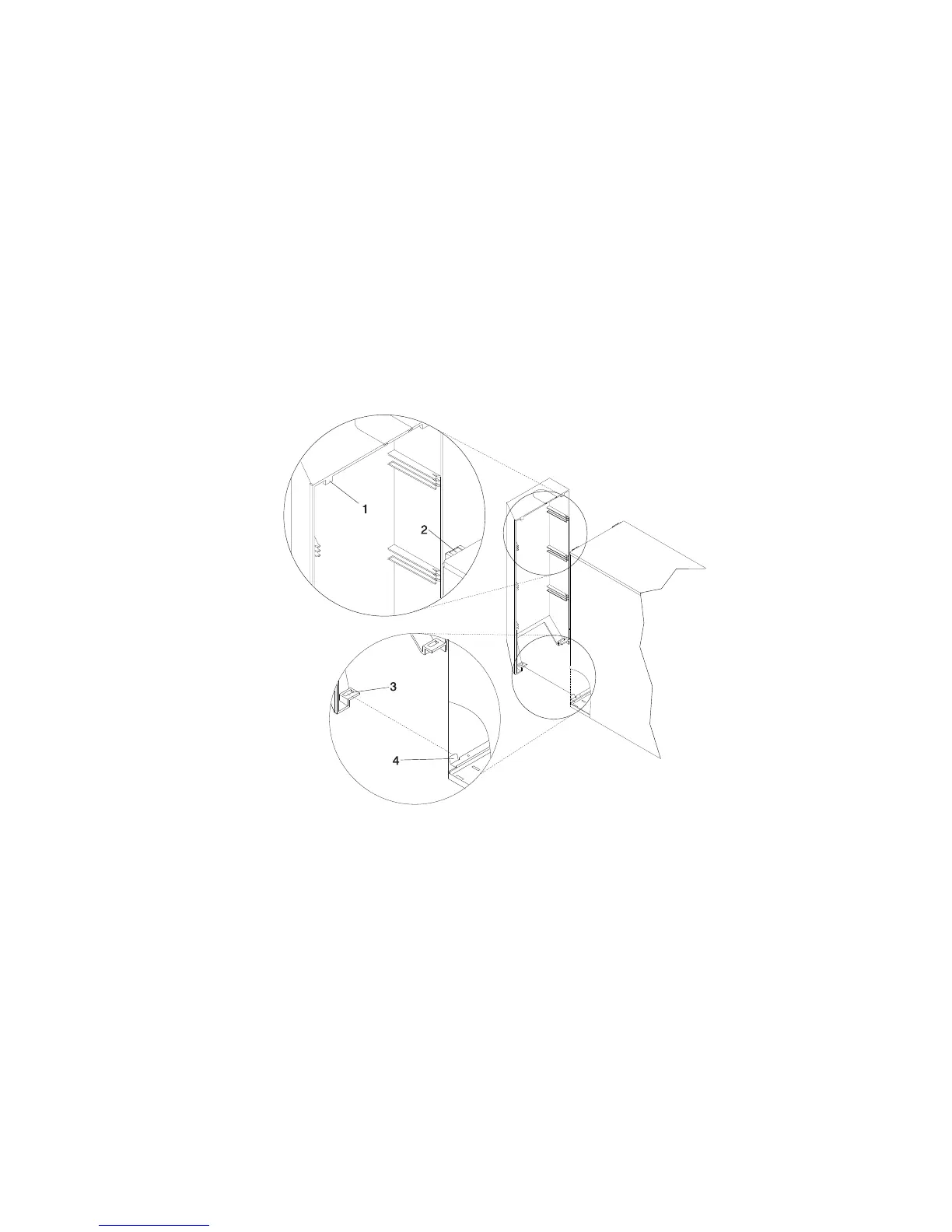

1 Back Cover Top Retaining Tab (Quantity 2) 3 Back Cover Bottom Locking Slot (Quantity
2)
2 Back Cover Top Locking Slot (Quantity 2) 4 Back Cover Bottom Retaining Tab
(Quantity 2)
Chapter 9. Removal and Replacement Procedures 437
