RIO-2 Cabling
I/O drawers are connected to the system through remote I/O (RIO-2) cable loops. The cable loops are
connected to ports located on the rear of the system. The RIO-2 cables are connected in loops so that the
system has two paths to each I/O drawer.
Up to two I/O drawers can be connected to a system using one RIO-2 loop. For cabling examples, see the
following illustrations.
Cabling RIO-2 Cables to One or Two I/O Subsystems
The following illustrations show the RIO-2 cabling for either one or two I/O drawer configurations.

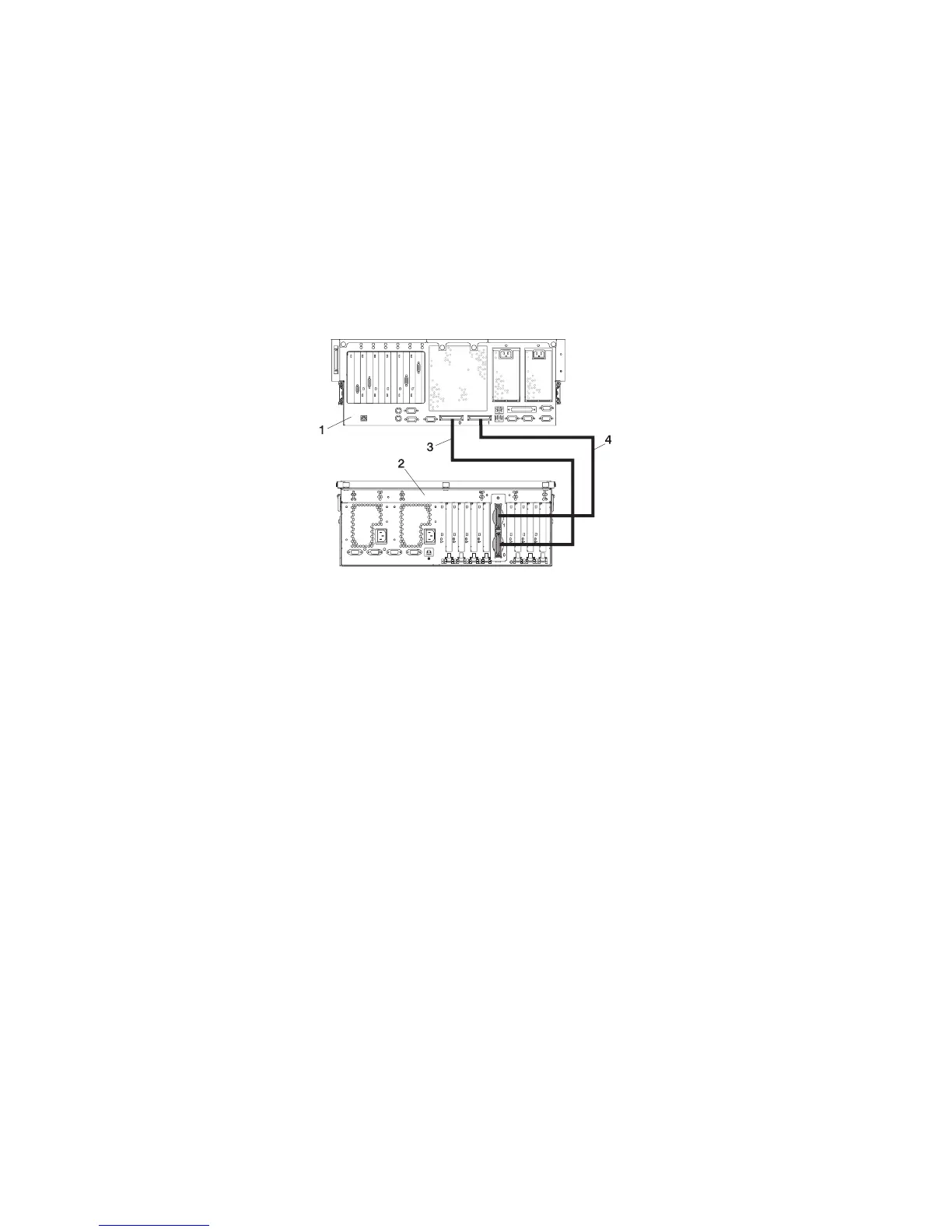

One I/O Drawer Attached to Model 6C4:
1 Model 6C4 3 Cable from Model 6C4 Connector RIO-2 0 to 7311 Model D20
Connector RIO-2 0
2 7311 Model D20 4 Cable from Model 6C4 Connector RIO-2 1 to 7311 Model D20
Connector RIO-2 1
44 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
