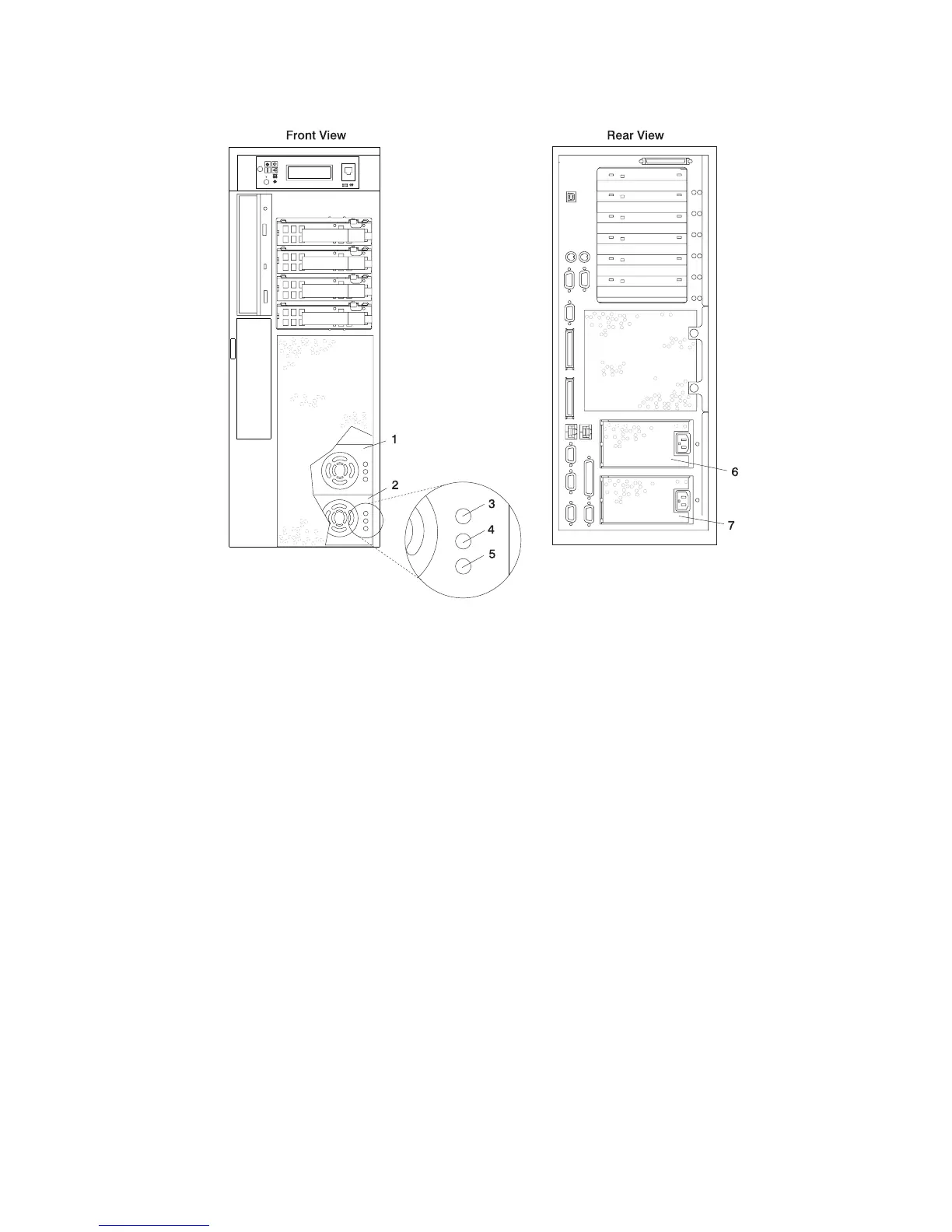

Model 6E4
1 Power Supply #2 (Redundant) (Front
View)
5 AC Good LED (Green)
2 Power Supply #1 (Primary) (Front
View)
6 Redundant Power Supply (Rear View)
3 Fault LED (Amber) 7 Primary Power Supply (Rear View)
4 DC Good LED (Green)
Note: The preceding illustration does not show the LEDs located on the top of the power supplies. For location
references, see the illustration on page 12 showing the power supplies for the Model 6C4.
Chapter 1. Reference Information 13
