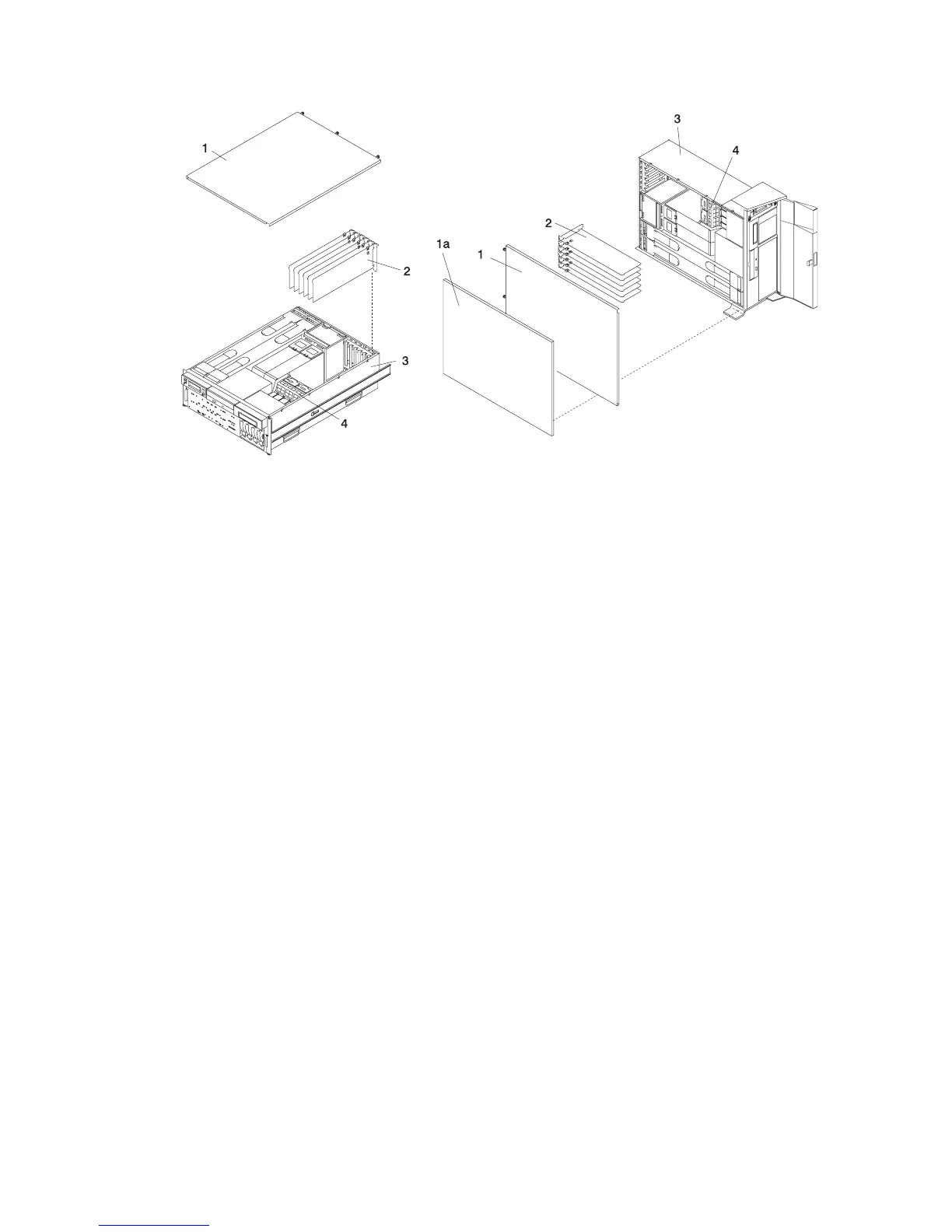

1 Service Access Cover 3 System Unit
1a Outer Access Cover 4 PCI Cooling Fan Bracket
2 PCI Adapters
9. Rotate the adapter retainer clip counterclockwise, as shown in the following illustration.
10. The tab resting on the adapter retention bracket should spring to a vertical position, coming to rest
next to the adapter retention latch.
11. Carefully grasp the PCI adapter by its top edge or upper corners, and remove it from the system.
Store the adapter in a safe place.
12. If you do not plan to install another adapter into the vacated slot, seal the expansion slot using an
expansion-slot cover. If you are installing another adapter, go to “Adding or Replacing a
Non-Hot-Pluggable PCI Adapter” on page 448.
13. If you have other options to install, refer to “Procedure List” on page 422. If you do not have other
options to install, continue on to the next step.
14. Replace the service access cover as described in “Service Access Cover Replacement (Model 6C4)”
on page 431 or “Service Access Cover Replacement (Model 6E4)” on page 437.
15. On a Model 6C4, put the system drawer back into the operating position as described in “Returning
the Model 6C4 to the Operating Position” on page 430.
16. Connect the adapter cables.
17. Reconnect the power source to the system.
18. On a Model 6C4, route the cables through the cable-management arm.
19. Go to ″MAP 0410: Repair Checkout″ in RS/6000 Eserver pSeries Diagnostic Information for Multiple
Bus Systems. If necessary, refer to “Starting the System without an HMC Attached” on page 425.
After you have completed checking the system close, the rack or system doors.
