13. Rotate the locking retainer clip, lift the plastic stop, and remove the expansion slot cover.

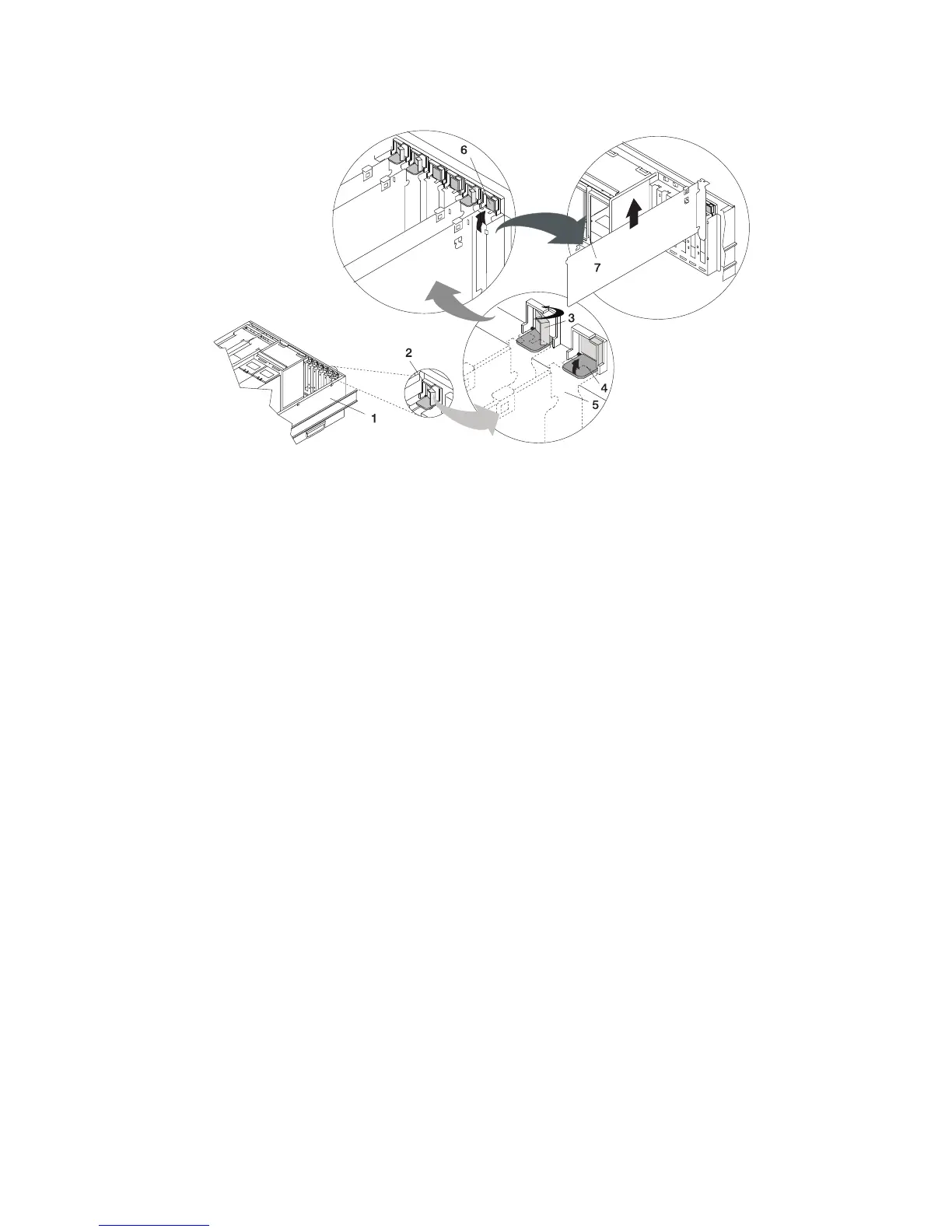

1 System Unit 5 PCI adapter faceplate (dotted lines)
2 Adapter Retainer Assembly 6 Adapter Retainer Assembly (in the unlocked
position)
3 Adapter Retainer Assembly (retainer seat
down and the retainer clip in the locked
position)
7 PCI Adapter
4 Adapter Retainer Assembly (retainer seat
down and the retainer clip in the unlocked
position)
14. Follow the instructions on the screen to install the adapter until the LED for the specified PCI slot is
set to the Action state. See “Component LEDs” on page 544.
15. When you are instructed to install the adapter in the adapter slot, carefully grasp the adapter by the
edges and align the adapter in the slot guides. Insert the adapter fully into the adapter slot connector.
If you are installing a full-length adapter, ensure that both ends of the adapter engage the card
guides.
458 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
