8. Select System Storage Management (Physical and Logical Storage).
9. Select Removable Disk Management.
10. Select Remove a Disk.
11. Select the desired disk from the list on the screen and press Enter.
12. Remove the disk drive by placing the handle on the disk drive into the open position (perpendicular to
the drive) and pulling the hot-plug disk drive away from the bay. The lit LED on the disk drive will turn
off when the disk drive is removed.

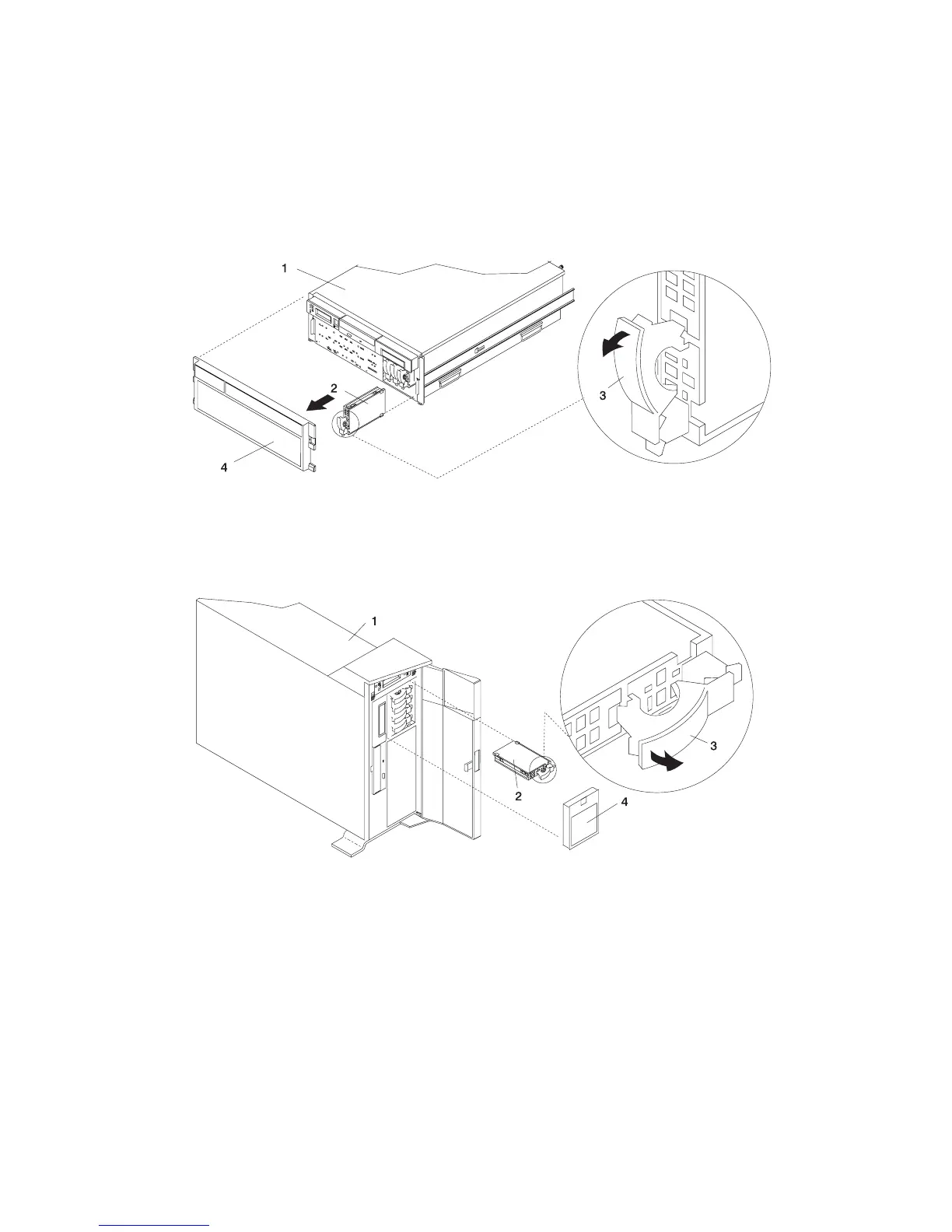

1 Model 6C4 3 Disk Drive Release Handle
2 Disk Drive 4 Front Bezel
1 Model 6E4 3 Disk Drive Release Handle
2 Disk Drive 4 Disk Drive Access Cover
13. Press F10 to exit smitty.
472 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
