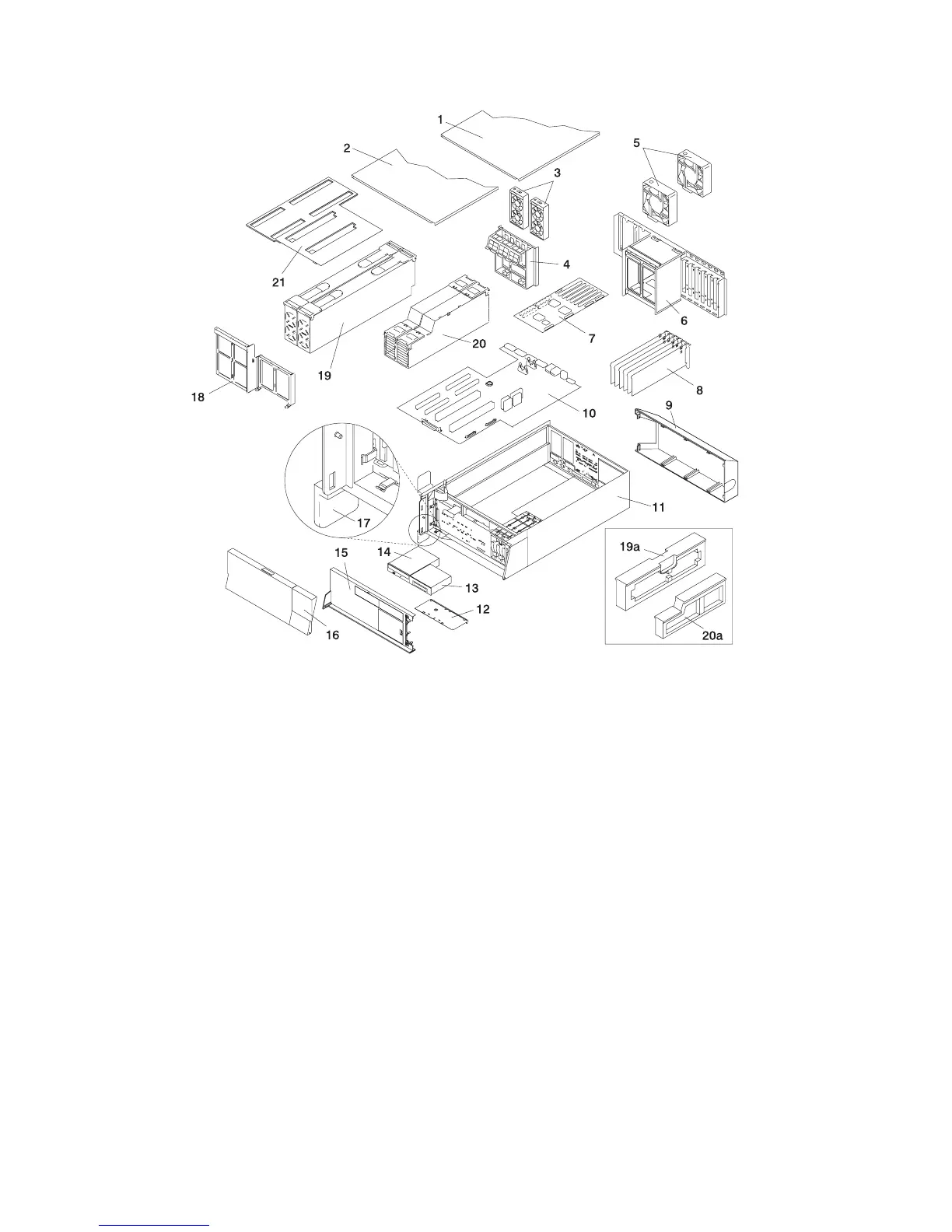

1 Outer Side cover 13 Optional Media Device (for example,
diskette drive or tape drive)
2 Service Access Cover 14 IDE CD-ROM Drive
3 PCI Cooling Fans 15 Bezel
4 PCI Cooling Fan and Cable Management
Bracket
16 Bezel Door
5 Processor Cooling Fans 17 System Front Stabilizer Foot
6 Processor Cooling Fan Cage 18 Front Power Supply and Processor Support
Bracket
7 PCI Riser Card 19 Power Supply #1 (Primary)
Power Supply #2 (Redundant)
8 PCI Adapters 19a Power Supply Filler Panel
9 Back Cover 20 Processor Assemblies 1 and 2
10 CEC Backplane 20a Processor Filler Panel
11 Model 6E4 21 Plastic Membrane
12 Media Device Support Shelf
512 Eserver pSeries 630 Model 6C4 and Model 6E4 Service Guide
