178 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
When you are satisfied with the presented configuration click Assign as shown in
Figure 4-48. The array MDisks are then created and initialized on the background.

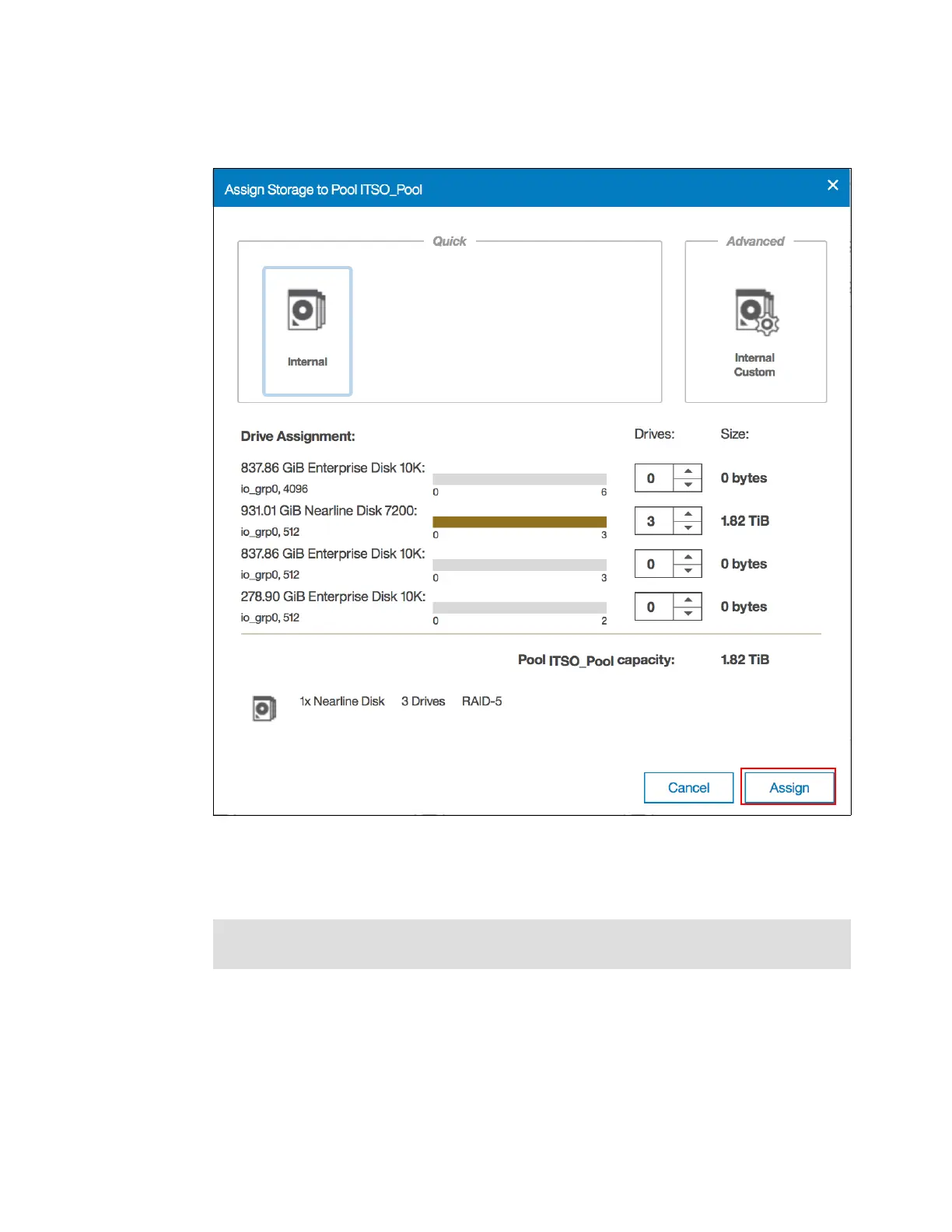

Figure 4-48 Clicking assign on quick configuration wizard
Advanced internal custom configuration
Selecting Internal Custom allows the user to customize the configuration for internal drives.
The following values can be customized:
RAID level
Number of spares
Array width
Stripe width
Number of drives of each class
Tip: It is advised to use the advanced configuration only when the quick configuration
suggested does not fit your business requirements.
