226 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

2. Select one of the VMkernel ports and click Edit. The window that is shown in Figure 5-34

opens.

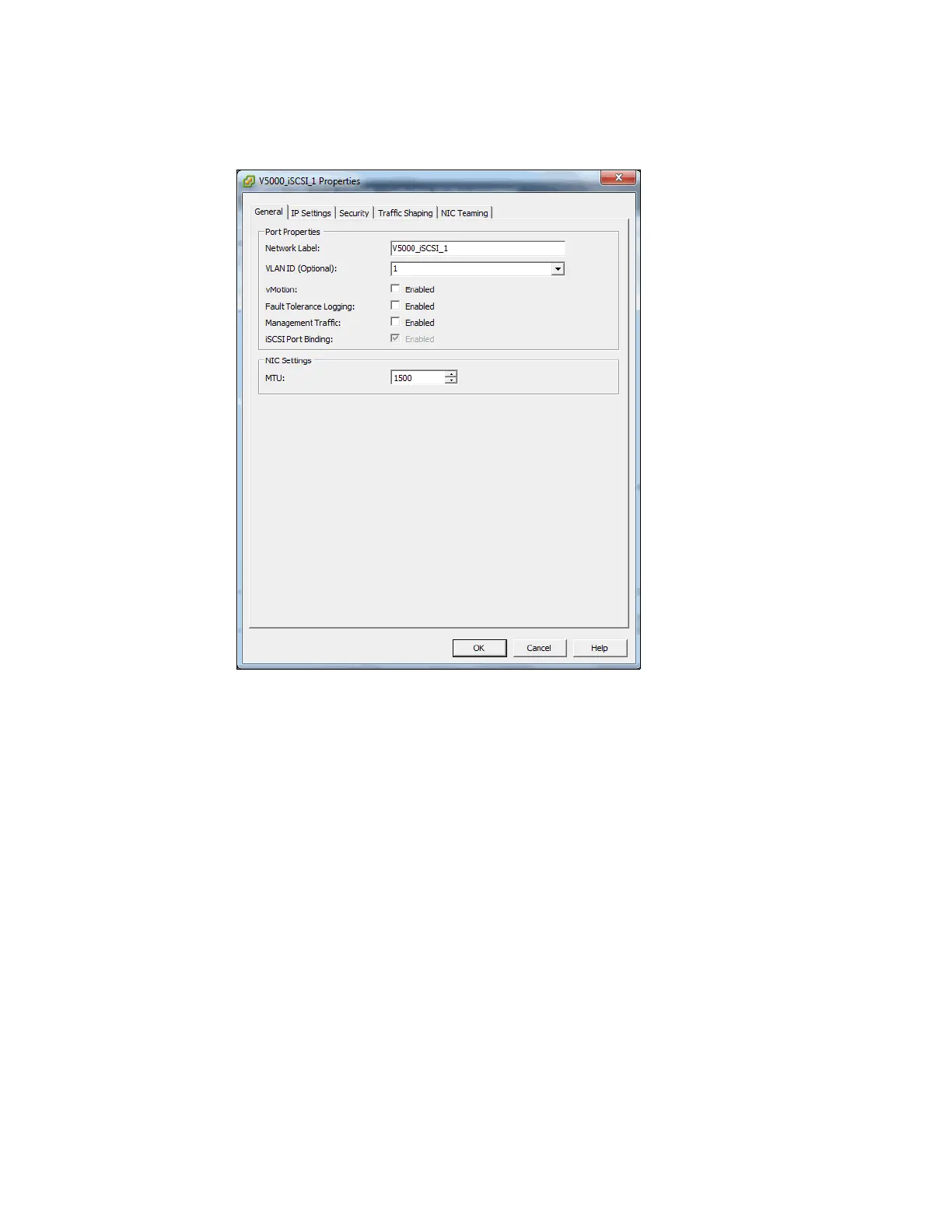

Figure 5-34 Editing a VMkernel port
