318 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

All other options, such as Volume copy type, Caching I/O group, Preferred node, and

Accessible I/O groups, can be left with their default options as shown in Figure 6-30.

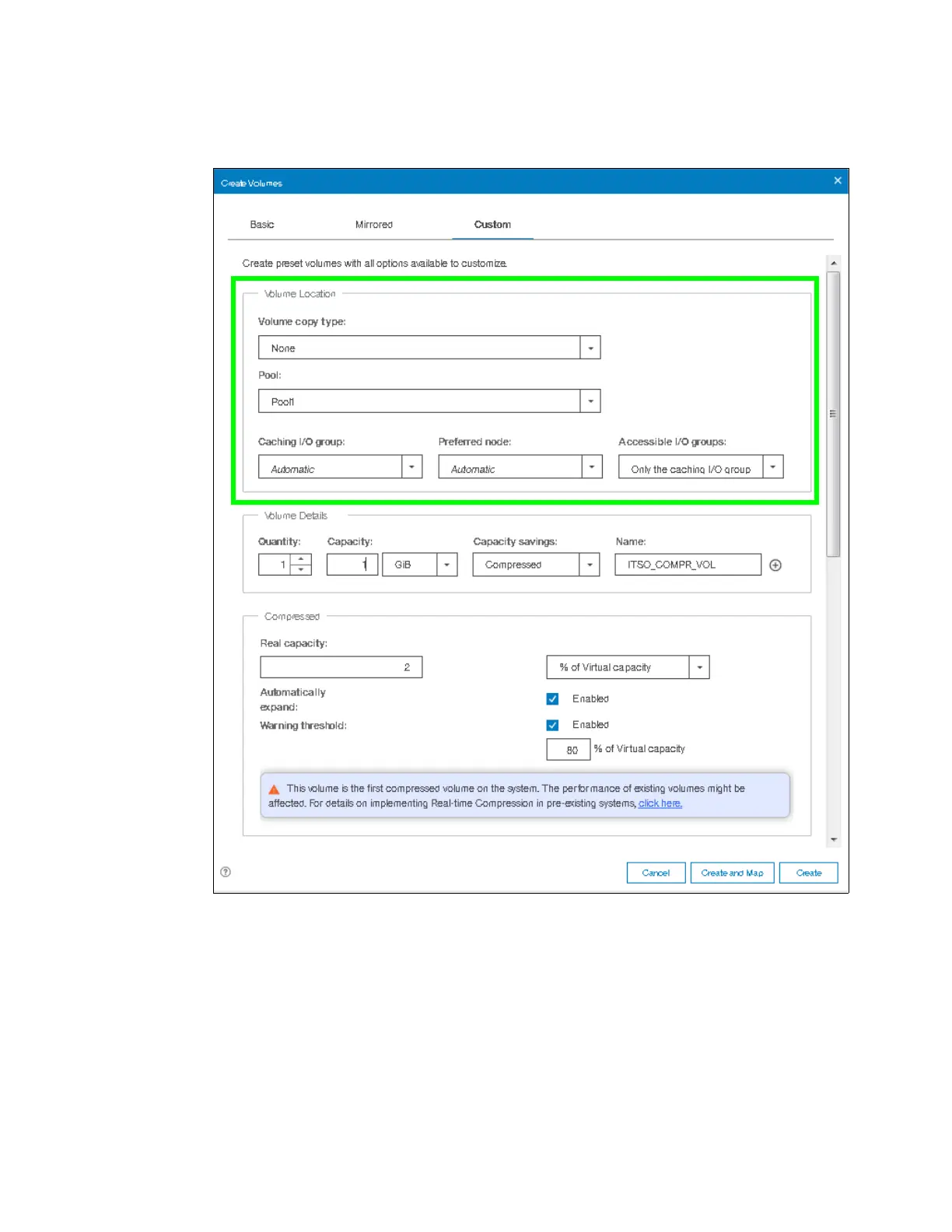

Figure 6-30 Defining a volume as compressed using the Capacity savings option
