342 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

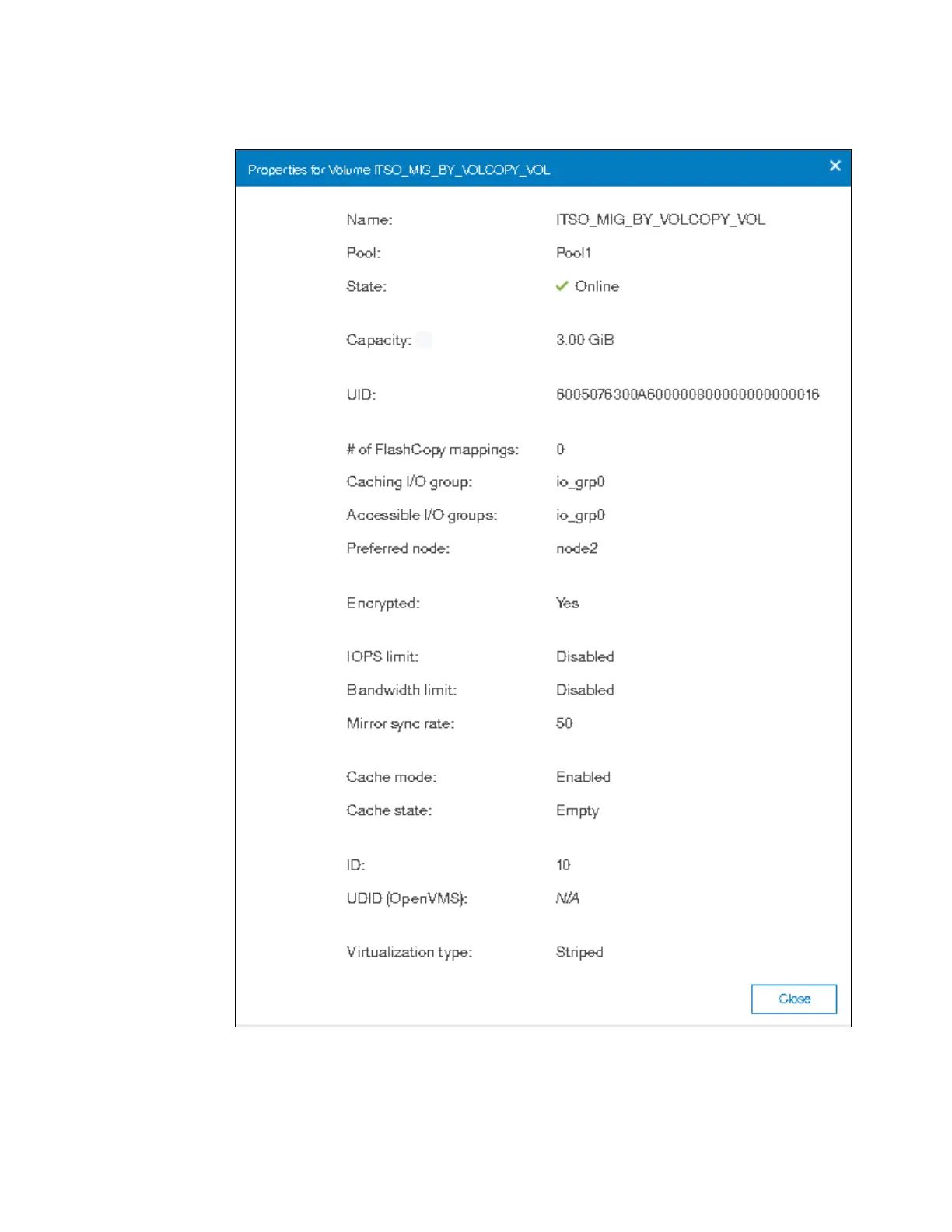

7. Ensure that the new copy is in the target storage pool, as shown in Figure 6-64.

Figure 6-64 Verifying the new copy in the target storage pool
