Chapter 12. RAS, monitoring, and troubleshooting 677

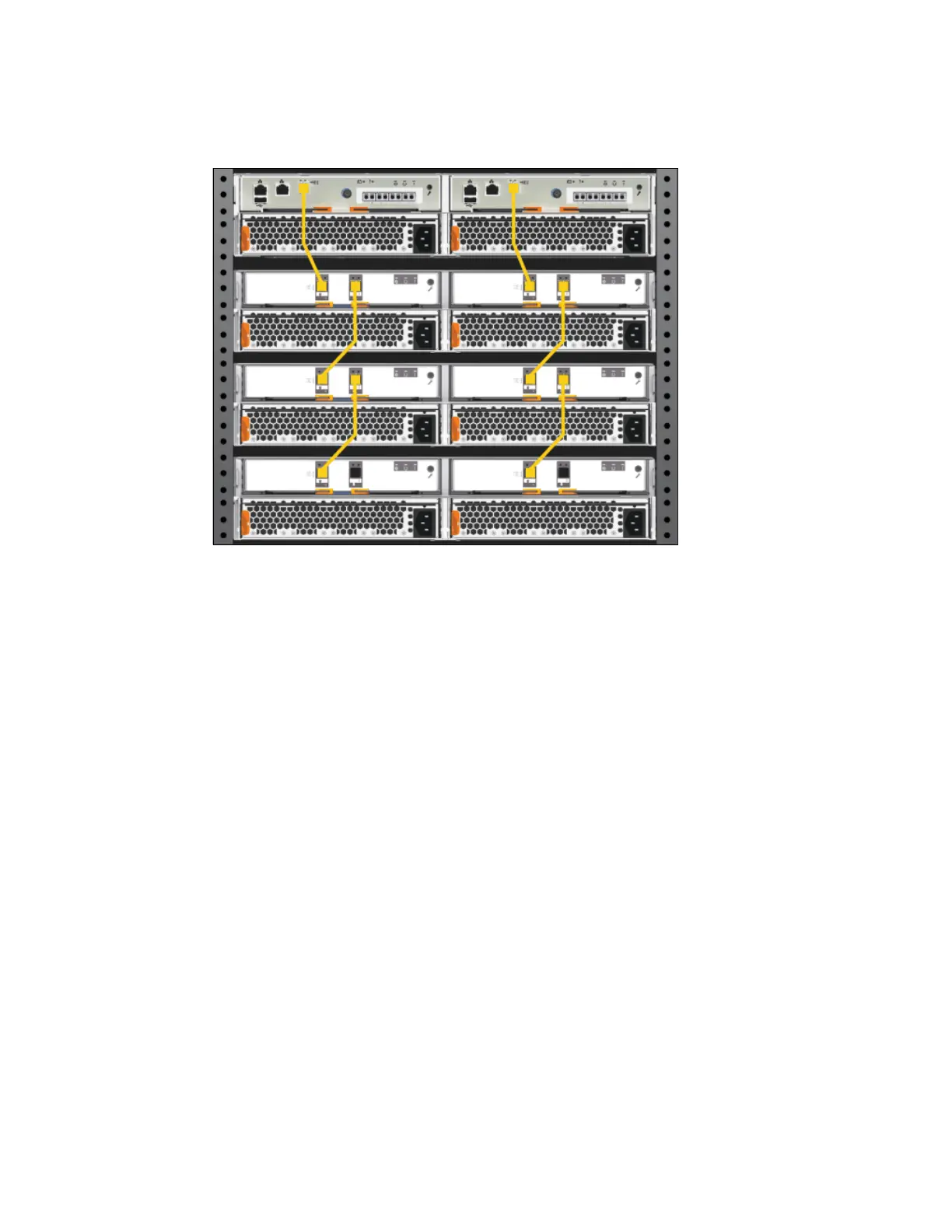

Figure 12-20 shows the SAS cabling on a Storwize V5020 with three attached expansion

enclosures.

Figure 12-20 SAS expansion cabling on the Storwize V5020
