Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 79.
Installing the server top cover
Use this information to install the server top cover.
About this task
To install the server cover, complete the following steps:
Procedure
1. Make sure that all cables, adapters, and other components are installed and
seated correctly and that you have not left loose tools or parts inside the server.
Also, make sure that all internal cables are correctly routed.
2. Align the cover over the server (toward the rear of the server) until the cover
edges slip into position over the chassis.
Attention: Before sliding the cover forward, make sure that all the tabs on
both the front, rear, and side of the cover engage the chassis correctly. If all the
tabs do not engage the chassis correctly, it will be hard to remove the cover
later.
3. Slide the cover forward toward the front of the server until the cover is
completely closed.

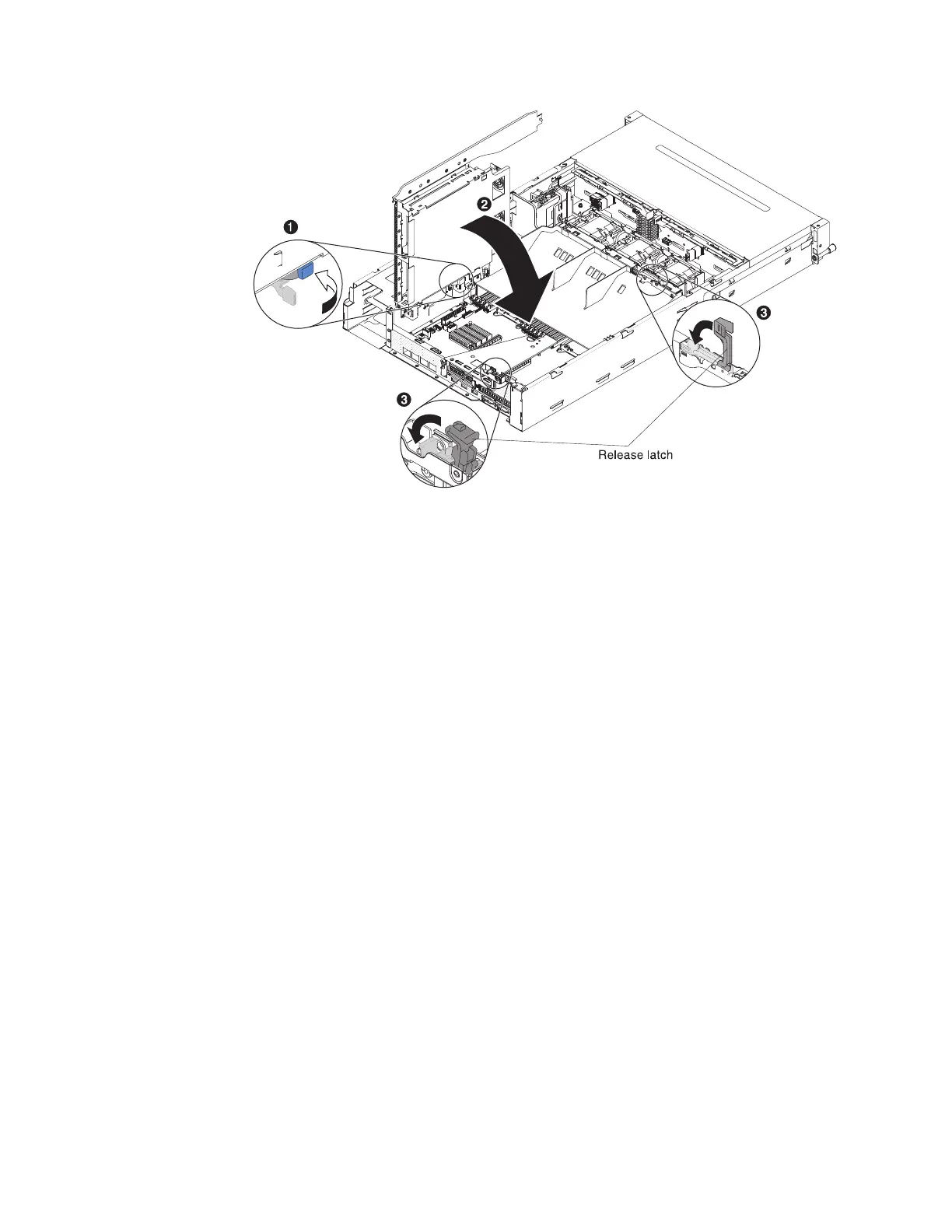

Figure 70. Hot-swap rear hard disk drive cage installation
84 System x3650 M4 BD Type 5466: Installation and Service Guide

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
