Replacing the air baffle
Use this information to replace the air baffle.
About this task
To install the air baffle, complete the following steps.
Procedure
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 32.
2. Align the tabs on the air baffle with the slots on the chassis.
3. Lower the air baffle into the server. Make sure that the tabs on the air baffle are
inserted into the holes on the chassis (see the illustration).
Attention: For proper cooling and airflow, reinstall the air baffle before you
turn on the server. Operating the server with the air baffle removed might
damage server components.
4. If necessary, install the PCI riser-card assembly (see “Replacing a PCI riser-card
assembly” on page 208.
5. Rotate the hot-swap rear hard disk drive cage down (see “Rotating the
hot-swap rear hard disk drive cage down” on page 169.
6. Install the server top cover (see “Replacing the server top cover” on page 260.
7. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the server.

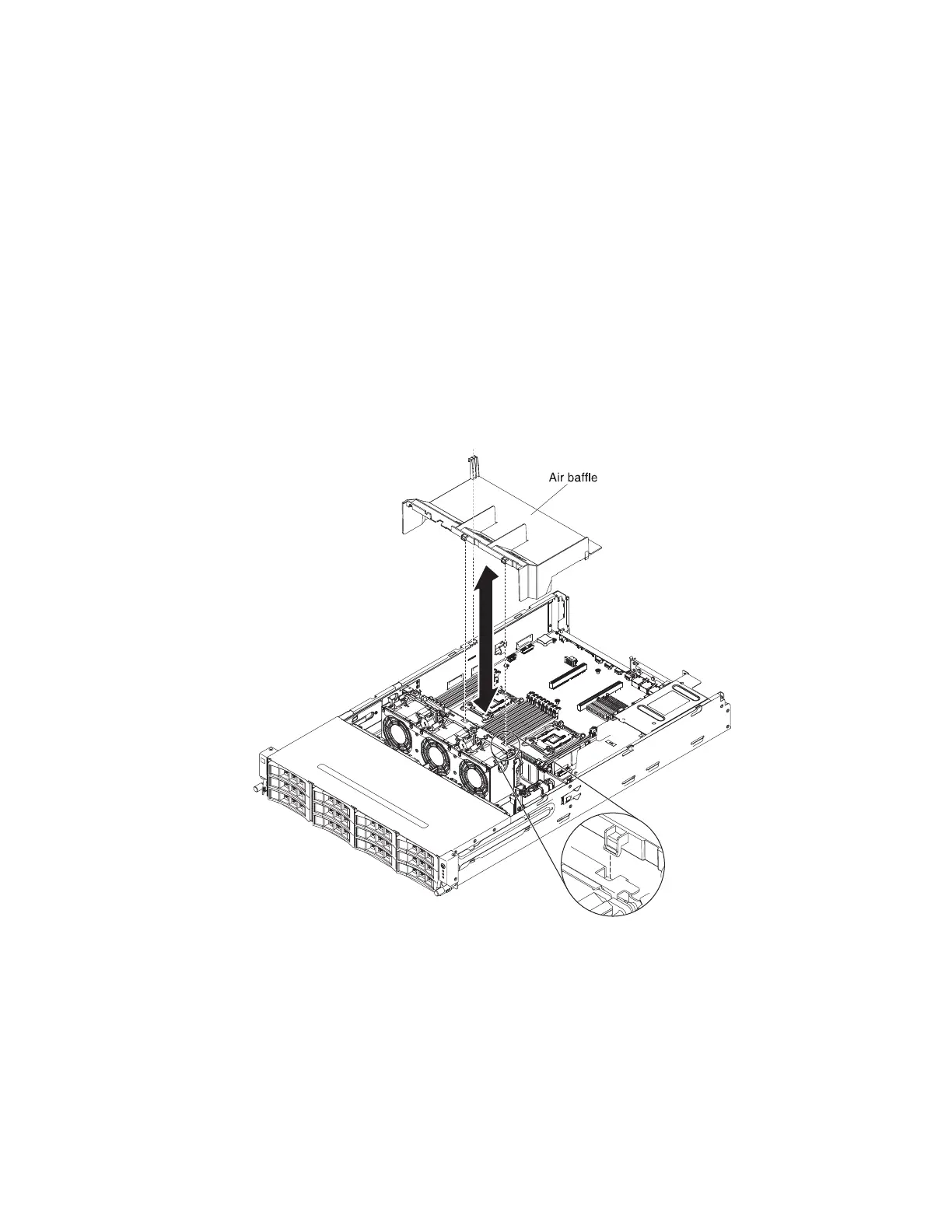

Figure 190. Air baffle installation
262 System x3650 M4 BD Type 5466: Installation and Service Guide
