Replacing a PCI riser-card assembly
Use this information to replace a PCI riser-card assembly.
About this task
To replace the PCI riser-card assembly, complete the following steps:
Procedure
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 32.
2. Make sure that the server and all peripheral devices are turned off and that the
power cords and all external cables are disconnected.
3. Reinstall any adapters and reconnect any internal cables that you removed in
other procedures.
4. Align the PCI riser-card assembly with the PCI riser connector on the system
board and guide pins on the server; then, press down on blue touch points on
the PCI riser-card assembly to install the assembly in the server. Make sure that
the PCI riser-card assembly is fully seated in the PCI connectors on the system
board.

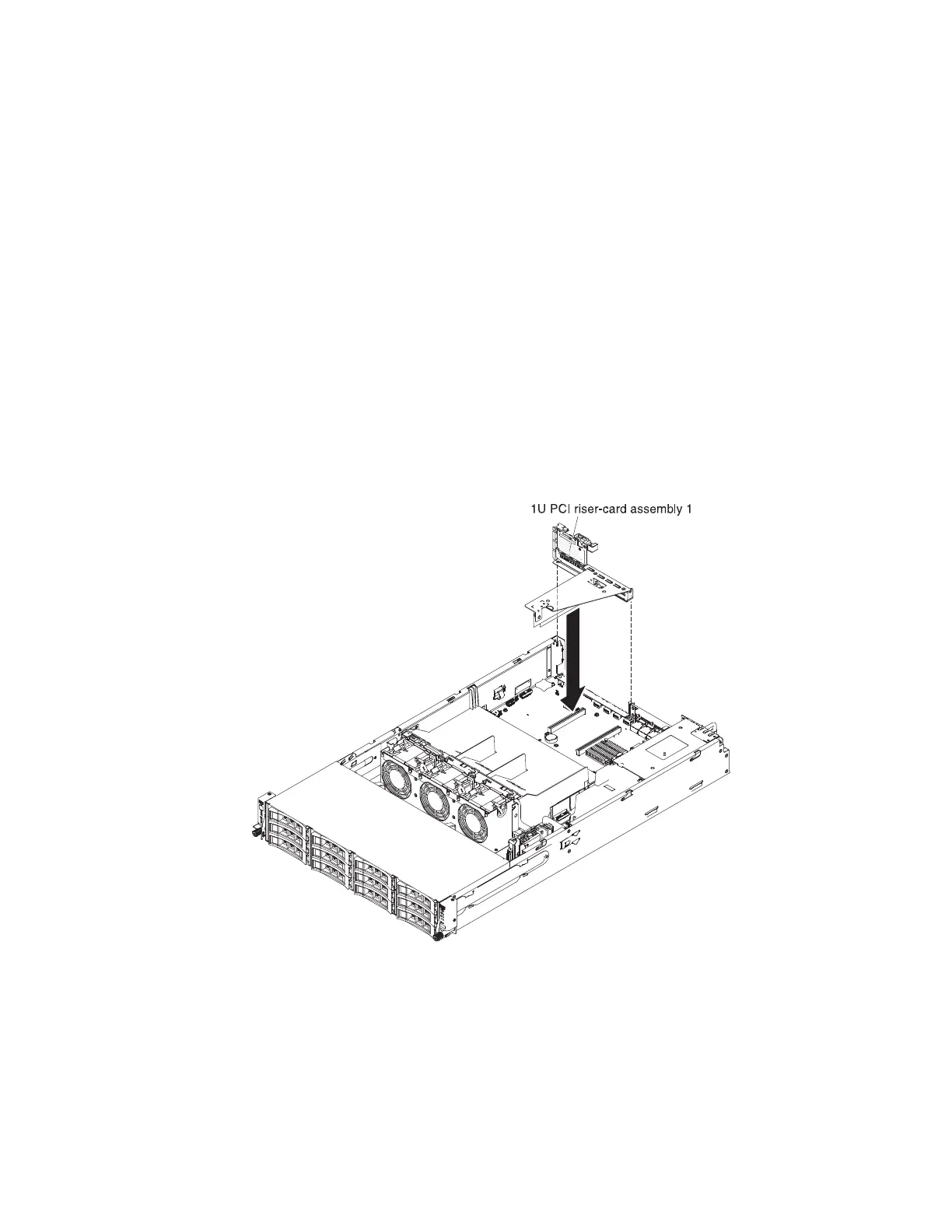

Figure 120. PCI riser-card assembly 1 installation
208 System x3650 M4 BD Type 5466: Installation and Service Guide
