Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 79.
Rotating the hot-swap rear hard disk drive cage up
Use this information to rotate the hot-swap rear hard disk drive cage up.
About this task
To rotate the hot-swap hard disk drive cage up, complete the following steps.
Procedure
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 32.
2. Turn off the server (see “Turning off the server” on page 22) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the server top cover (see “Removing the server top cover” on page 35.
4. Open the two respective blue latches on the chassis▌1▐ .
5. Slowly rotate the rear hard disk drive cage outwards until it stops ▌2▐.
6. Shift the switch on the rear hard disk drive cage to the lock position to keep
the hard disk drive cage fixed ▌3▐.

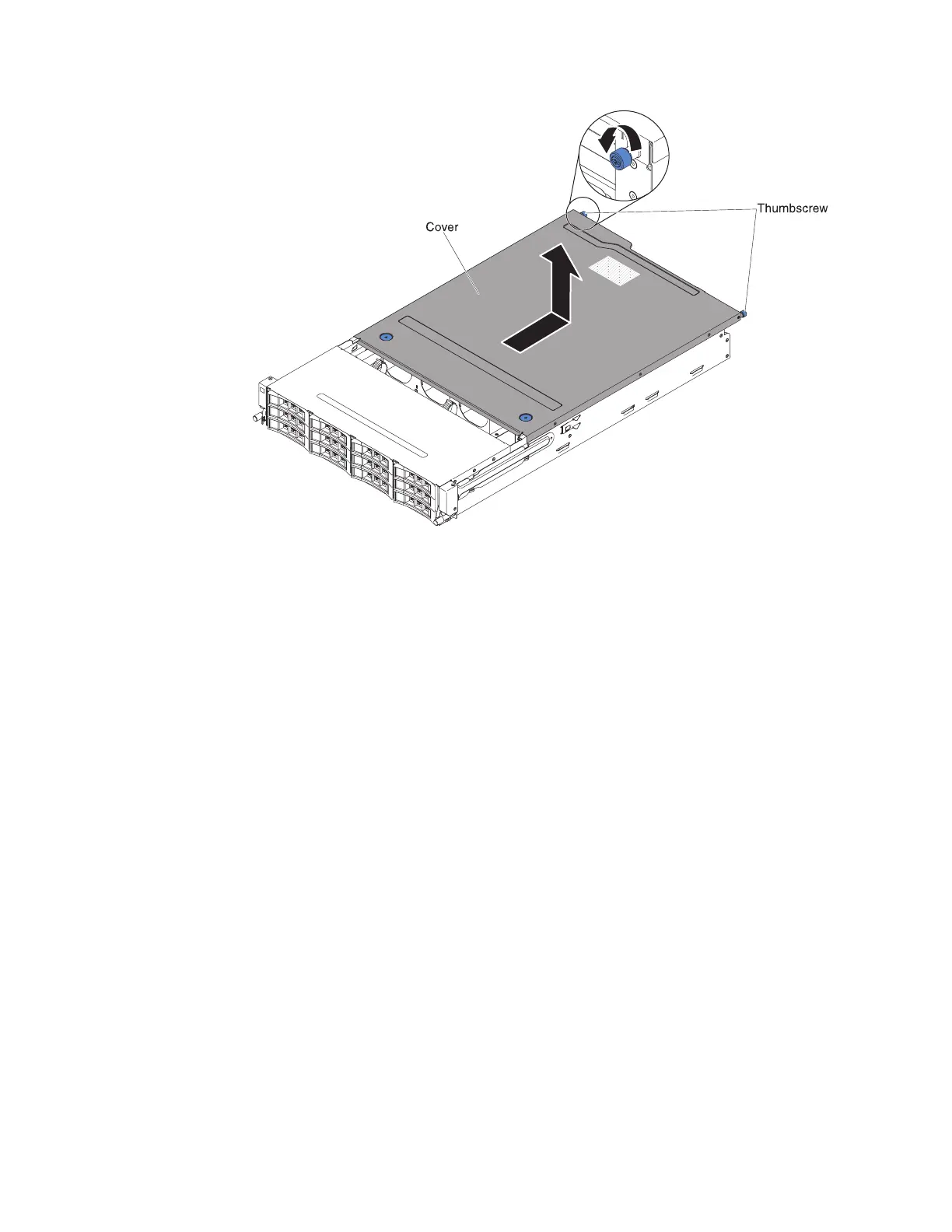

Figure 20. Cover removal
36 System x3650 M4 BD Type 5466: Installation and Service Guide
