System-board external connectors
The following illustration shows the external input/output connectors on the
system board.

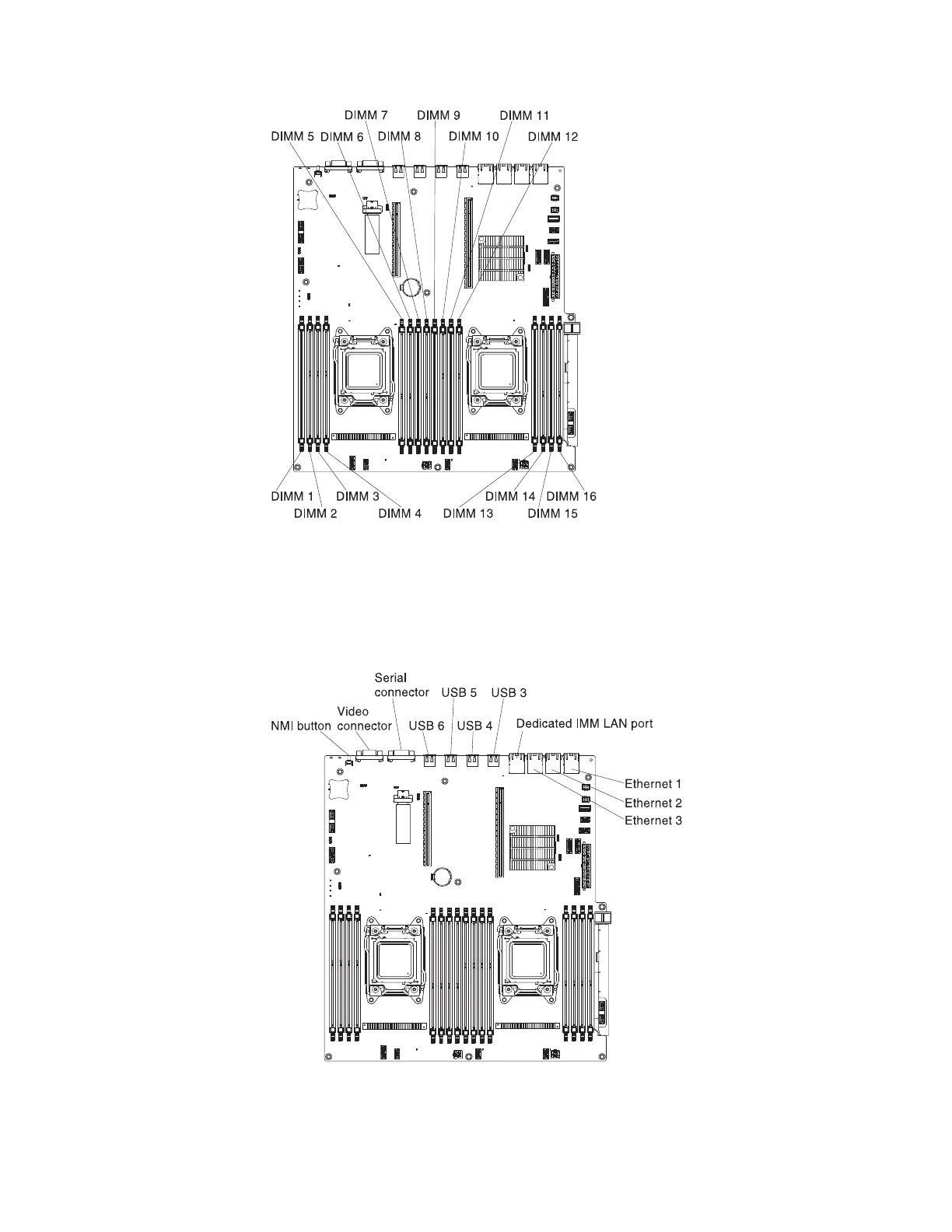

Figure 12. System board DIMM connectors
Figure 13. System board external connectors
Chapter 2. Installing optional devices 27
