DIMM installation sequence
When you install additional DIMMs, install them in the order shown in the
following table to optimize system performance.
About this task
Table 6. Non-mirroring (normal) mode DIMM installation sequence
Number of installed microprocessors DIMM connector population sequence
1 8,6,1,3,7,5,2,4
2 8, 16, 6, 14, 1, 9, 3, 11, 7, 15, 5, 13, 2, 10, 4, 12
The following tables lists the DIMM connectors on each memory channel.
Table 7. DIMM connectors on each memory channel
Number of installed
microprocessors Memory channel DIMM connectors
Microprocessor 1
Channel 1 7, 8
Channel 2 5, 6
Channel 3 1, 2
Channel 4 3, 4
The following table lists the DIMM connectors on each memory channel.

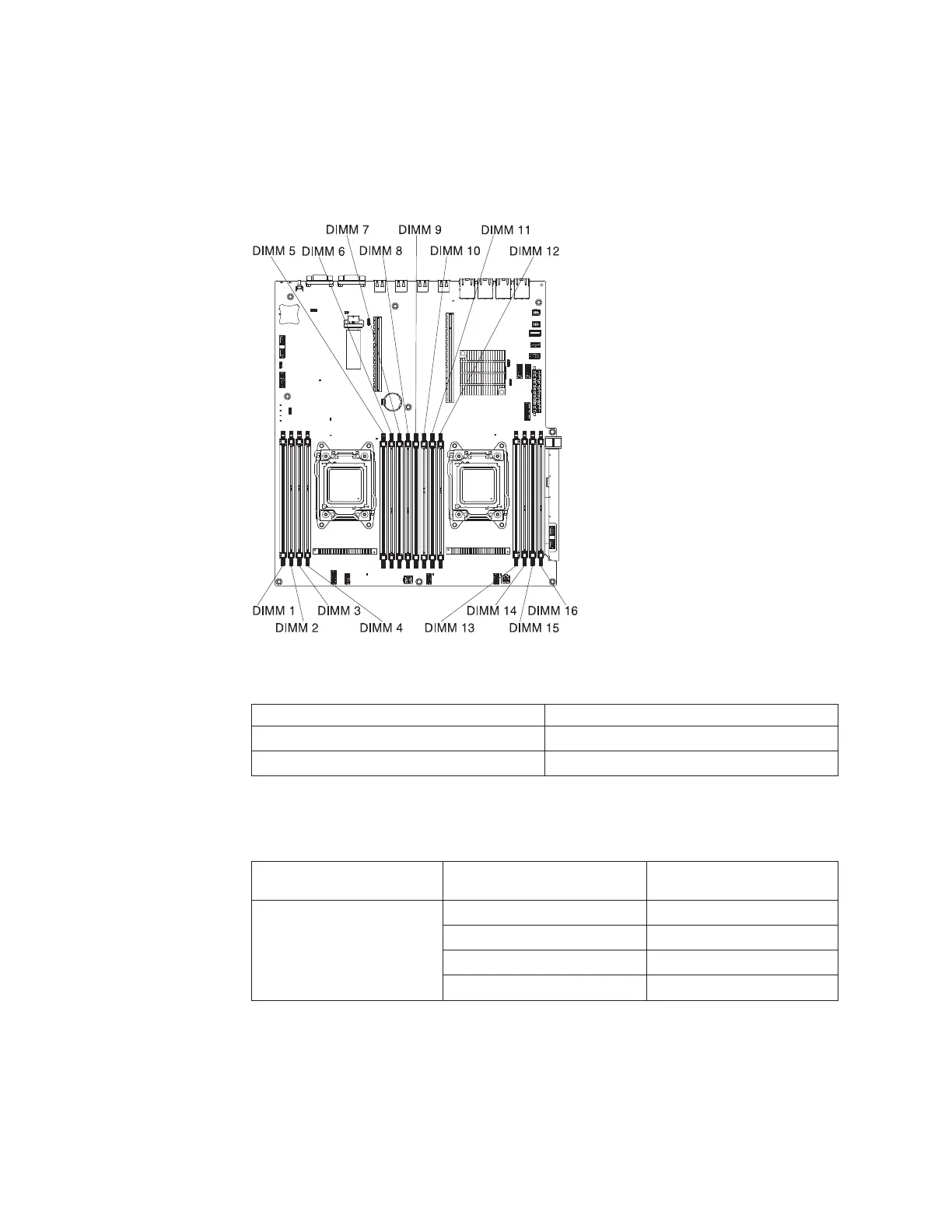

Figure 45. System board DIMM connectors
62 System x3650 M4 BD Type 5466: Installation and Service Guide

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
