IBM System x3650 M4 BD Type 5466 User Manual

System-board jumpers
This section describes the jumpers on the system board.
Table 3. System board jumpers
Jumper number Jumper name Jumper setting
CN14 Clear CMOS jumper
v Pins 1 and 2: Normal
(default) - This keeps the
CMOS data.
v Pins 2 and 3: This clears
the CMOS data such as
power-on password and
loads the default UEFI
settings.
Note 2
J2 UEFI boot recovery jumper
v Pins 1 and 2: Normal
(default) Loads the
primary firmware ROM
page.
v Pins 2 and 3: Loads the
secondary (backup)
firmware ROM page.
Notes 1 and 2
J9 IMM TPM jumper
v Pins 1 and 2: Normal
(default) TPM not physical
present.
v Pins 2 and 3: TPM
physical present.

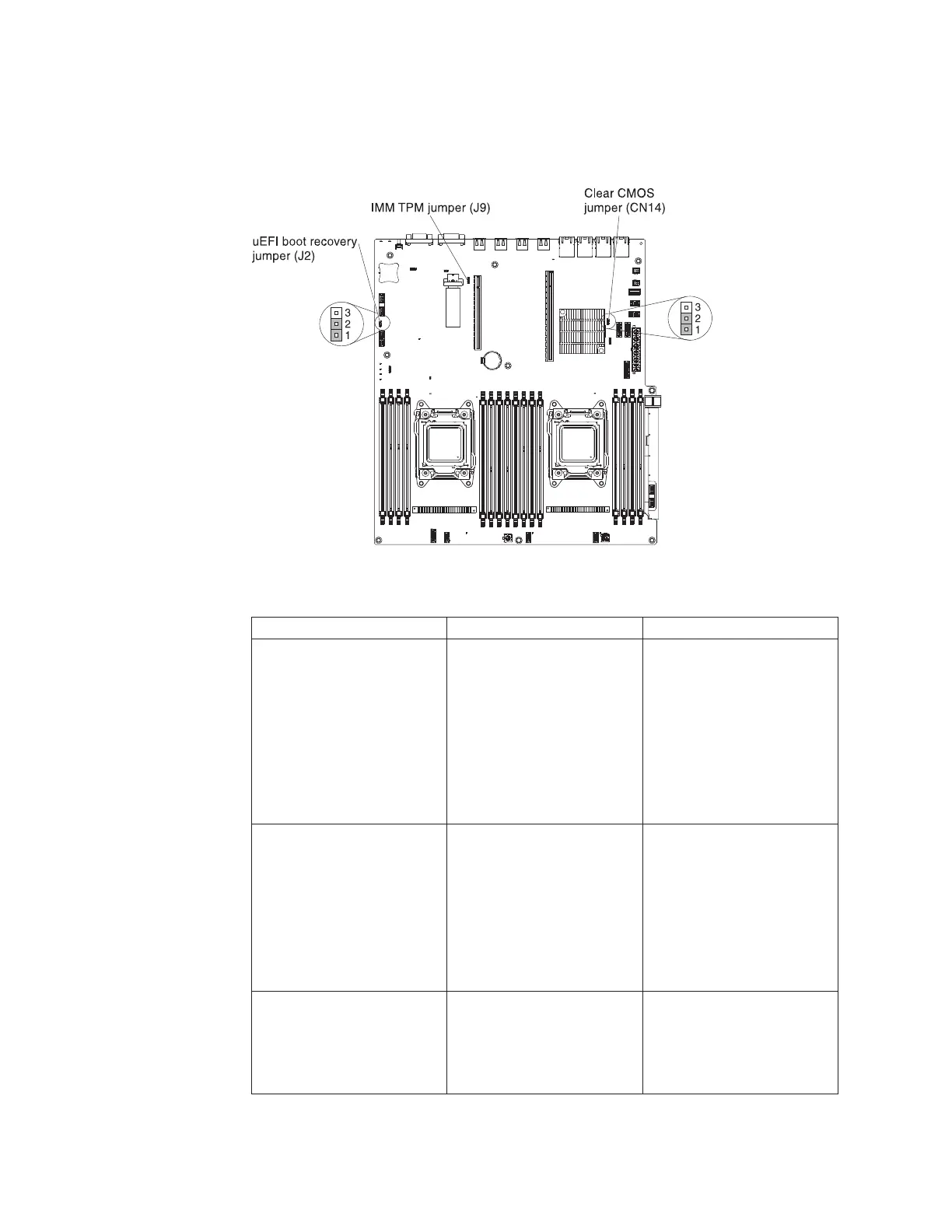

Figure 14. System board jumpers
28 System x3650 M4 BD Type 5466: Installation and Service Guide

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
