IBM System x3650 M4 BD Type 5466 User Manual

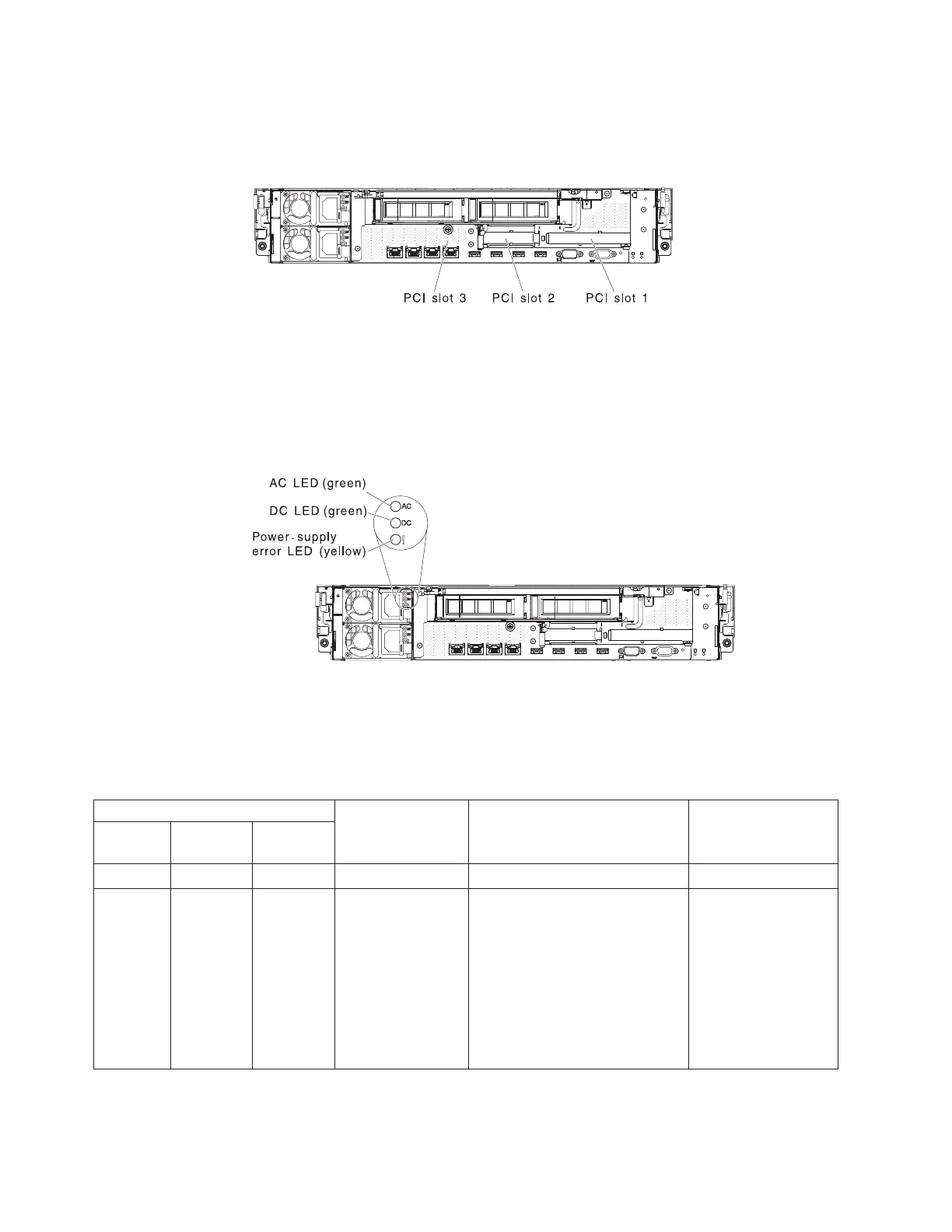

PCI riser-card adapter expansion slot locations
The section shows the PCI expansion slot connector locations on the server.
Power-supply LEDs
This section shows the power-supply LEDs on the server.
The following illustration shows the power-supply LEDs on the rear of the server.
The following table describes the problems that are indicated by various
combinations of the power-supply LEDs and suggested actions to correct the
detected problems.
Table 2. Power-supply LEDs status and required action
Power-supply LEDs
Description Action Notes
AC
(green) DC (green)
Error
(yellow)
On On Off Normal operation
Off Off Off No ac power to the
server or a problem
with the ac power
source
1. Check the ac power to the
server.
2. Make sure that the power
cord is connected to a
functioning power source.
3. Turn the server off and then
turn the server back on.
4. If the problem remains,
replace the power supply.
This is a normal
condition when no ac
power is present.
Figure 8. PCI expansion slot connector locations
Figure 9. Power-supply LEDs
20 System x3650 M4 BD Type 5466: Installation and Service Guide

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
