IBM System x3650 M4 BD Type 5466 User Manual

Attention:
v When you route cables, do not block any connectors or the ventilated space
around any of the fans.
v Make sure that cables are not routed on top of components that are under
the PCI riser-card assembly.
v Make sure that cables are not pinched by the server components.
9. Install the PCI riser-card assembly (see “Installing a PCI riser-card assembly”
on page 81).
10. Perform any configuration tasks that are required for the adapter.
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 79.
Installing a ServeRAID adapter on the PCI riser-card assembly
Use this information to install a ServeRAID adapter on the PCI riser-card assembly.
About this task
Important: When you install ServeRAID adapters on the PCI riser-card assemblies,
please install them in the order listed:
v Slot 3
v Slot 2 (For the rear backplane or external ServeRAID adapter only)
v Slot 1 (For external ServeRAID adapter only)

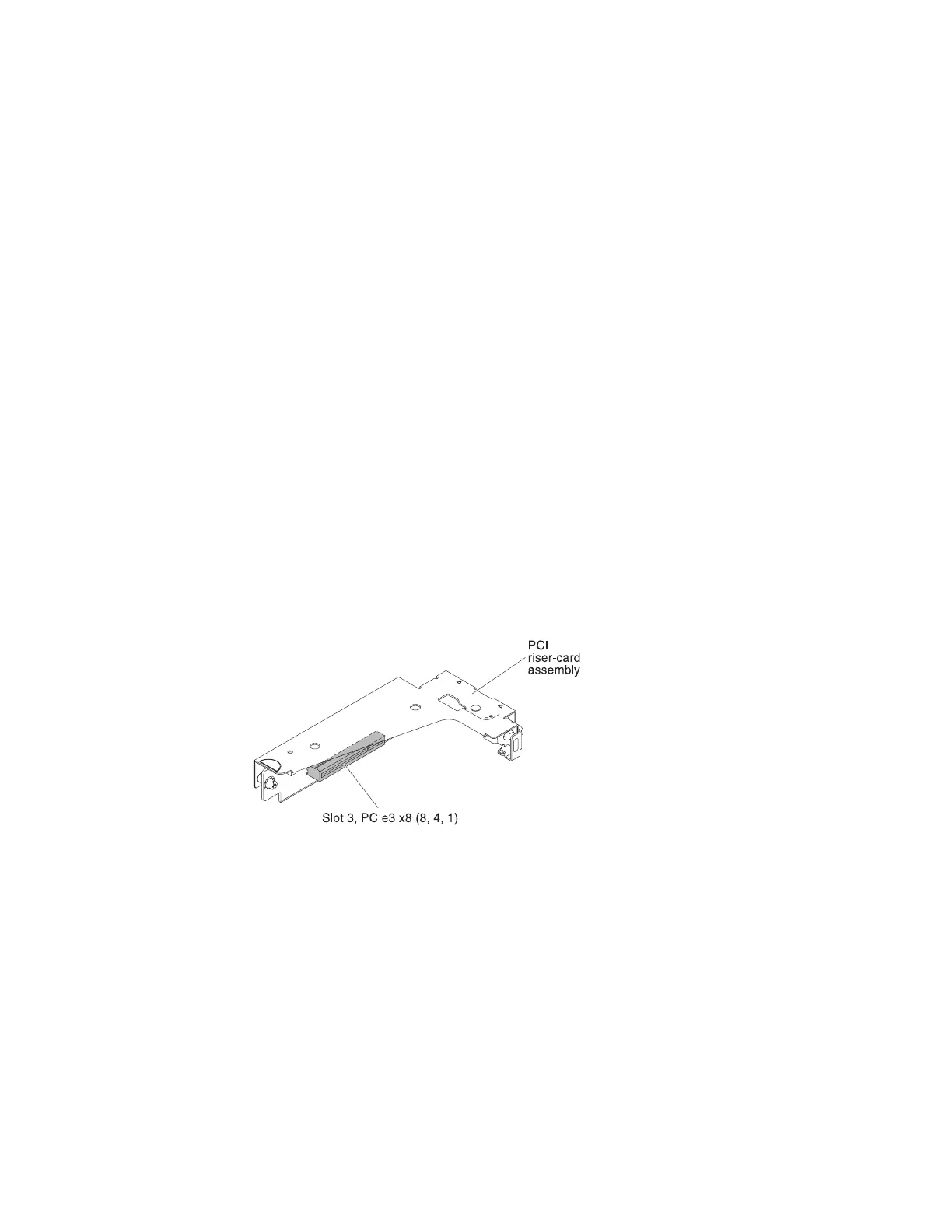

Figure 33. Slot 3
50 System x3650 M4 BD Type 5466: Installation and Service Guide

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
