7. Rotate the retention latch to the close position. Make sure the retention latch
engages the adapter securely.
8. Connect the cable to the network controller sideband connector on the system
board. (See “System-board internal connectors” on page 26).

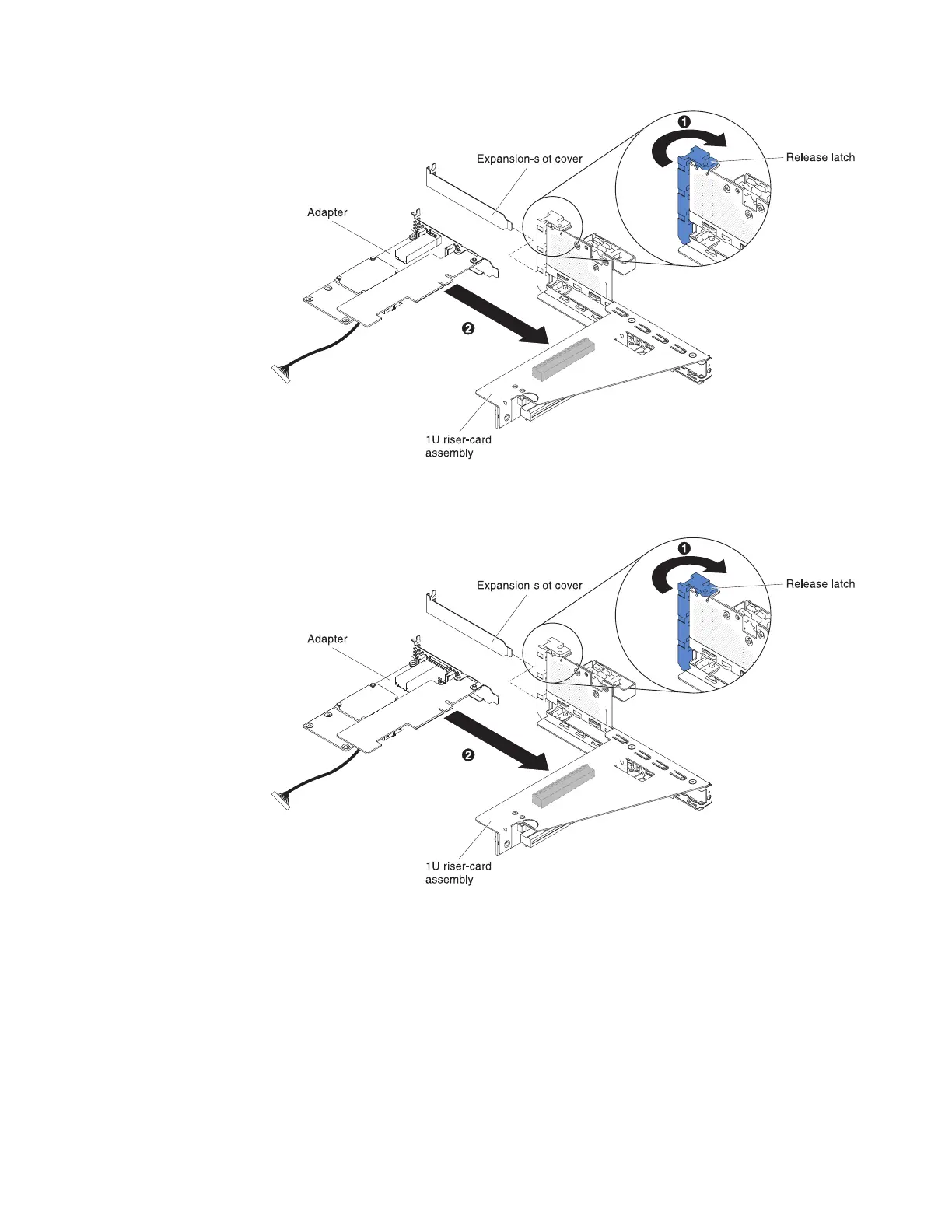

Figure 31. Single port 10GbE SFP+ embedded adapter installation
Figure 32. Dual port 10GbE SFP+ embedded adapter installation
Chapter 2. Installing optional devices 49
