Rotating the hot-swap rear hard disk drive cage down
Use this information to rotate the hot-swap rear hard disk drive cage down.
About this task
To rotate the hot-swap hard disk drive cage down, complete the following steps.
Procedure
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 32.
Attention: Make sure you have routed the power cable correctly as the
following illustration before you rotate the hot-swap rear hard disk drive cage
down. You have to route the cable underneath the bracket; then, route the cable
through the cable retainer clip. Improper cable routing may damage the power
cable.
2. Shift the switch on the rear hard disk drive cage to the unlock position▌1▐ .
3. Slowly rotate the cage downwards until it sits into place ▌2▐.
4. Close the blue latches on the chassis ▌3▐.

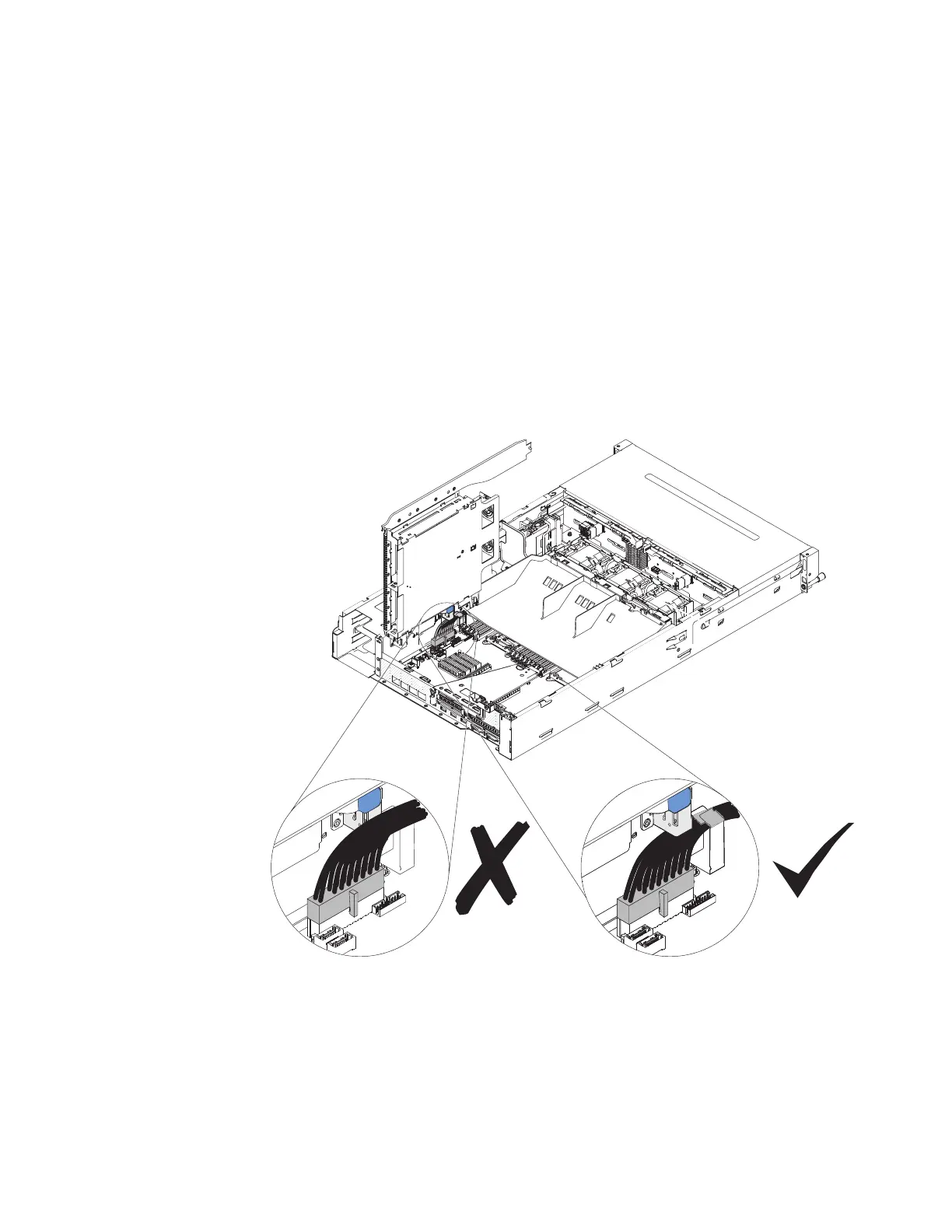

Figure 80. Cable routing
Chapter 6. Removing and replacing components 169
