Removing a ServeRAID adapter from the PCI riser-card assembly
Use this information to remove a ServeRAID adapter from the PCI riser-card
assembly.
About this task
To remove a ServeRAID adapter from the PCI riser-card assembly, complete the
following steps:
Procedure
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 32.
2. Turn off the server (see “Turning off the server” on page 22) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the server cover (see “Removing the server top cover” on page 258).
4. Rotate the hot-swap rear hard disk drive cage up (see “Rotating the hot-swap
rear hard disk drive cage up” on page 168).
5. Remove PCI riser-card assembly 1 or 2 (see “Removing a PCI riser-card
assembly” on page 206).
6. The following illustrates the steps for removing an adapter from the PCI
riser-card assemblies:
v For PCI riser-card assembly 1:
a. Rotate the retention latch to the open position.
b. Carefully grasp the ServeRAID adapter by its top edge or upper corners,
and pull the ServeRAID adapter from the PCI riser-card assembly.

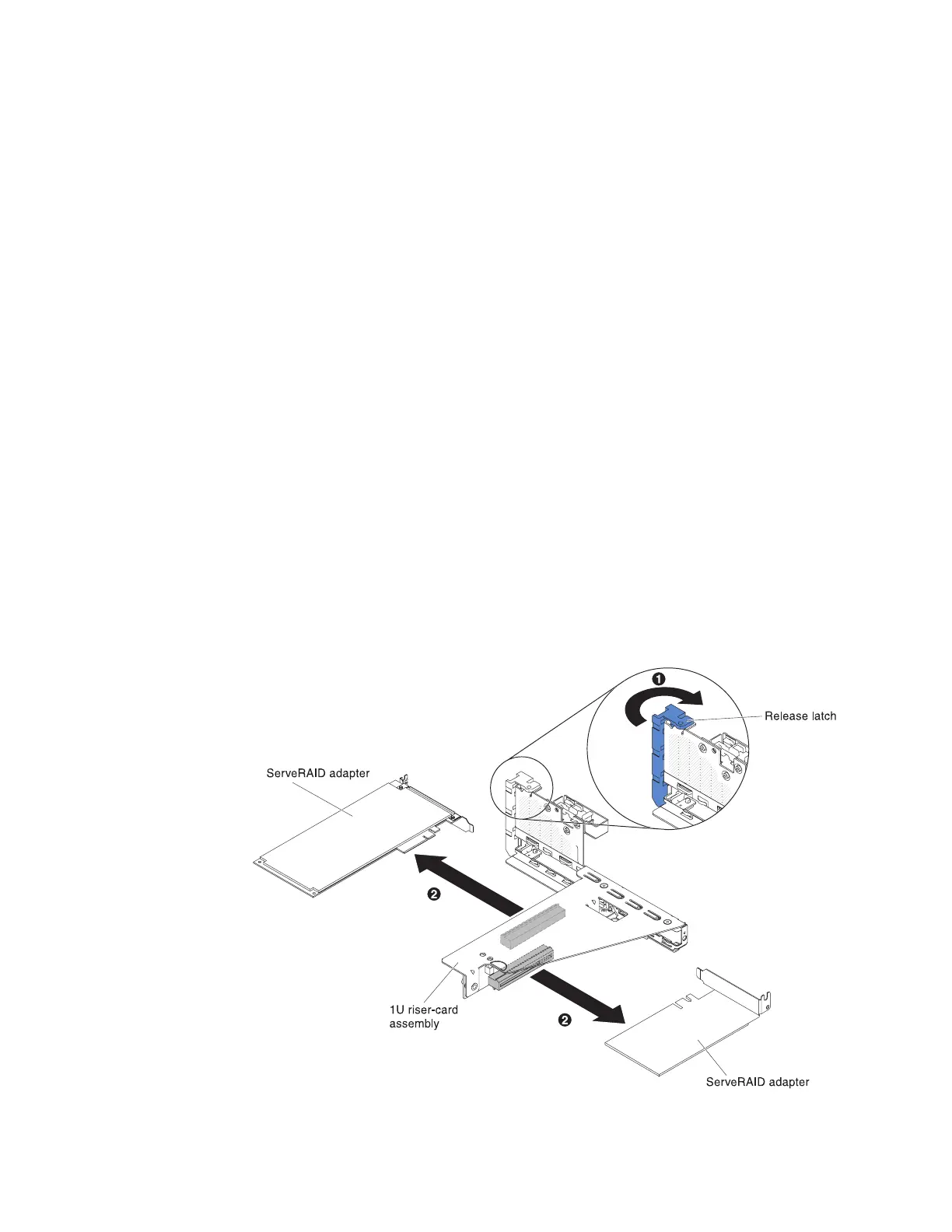

Figure 101. ServeRAID adapter removal
190 System x3650 M4 BD Type 5466: Installation and Service Guide
