Note: Make sure the backplane is engaged into place by the locating plates
and that it is securely installed in the server.
6. Close the two cable retainer clips behind the fan cage to secure the cabling.
7. Install the server top cover (see “Replacing the server top cover” on page 260.
8. Insert the cabling into the two cable clips and fasten the cable clips.
9. Reinstall the drives or filler panels.
10. Reconnect the external cables; then, reconnect the power cords and turn on
the peripheral devices and the server.
Removing the hot-swap backplane on the rear hard disk drive
cage
Use this information to remove the hot-swap backplane on the rear hard disk drive
cage.
About this task
The following illustrations show two different types of hot-swap backplanes.
v Type1-SATA

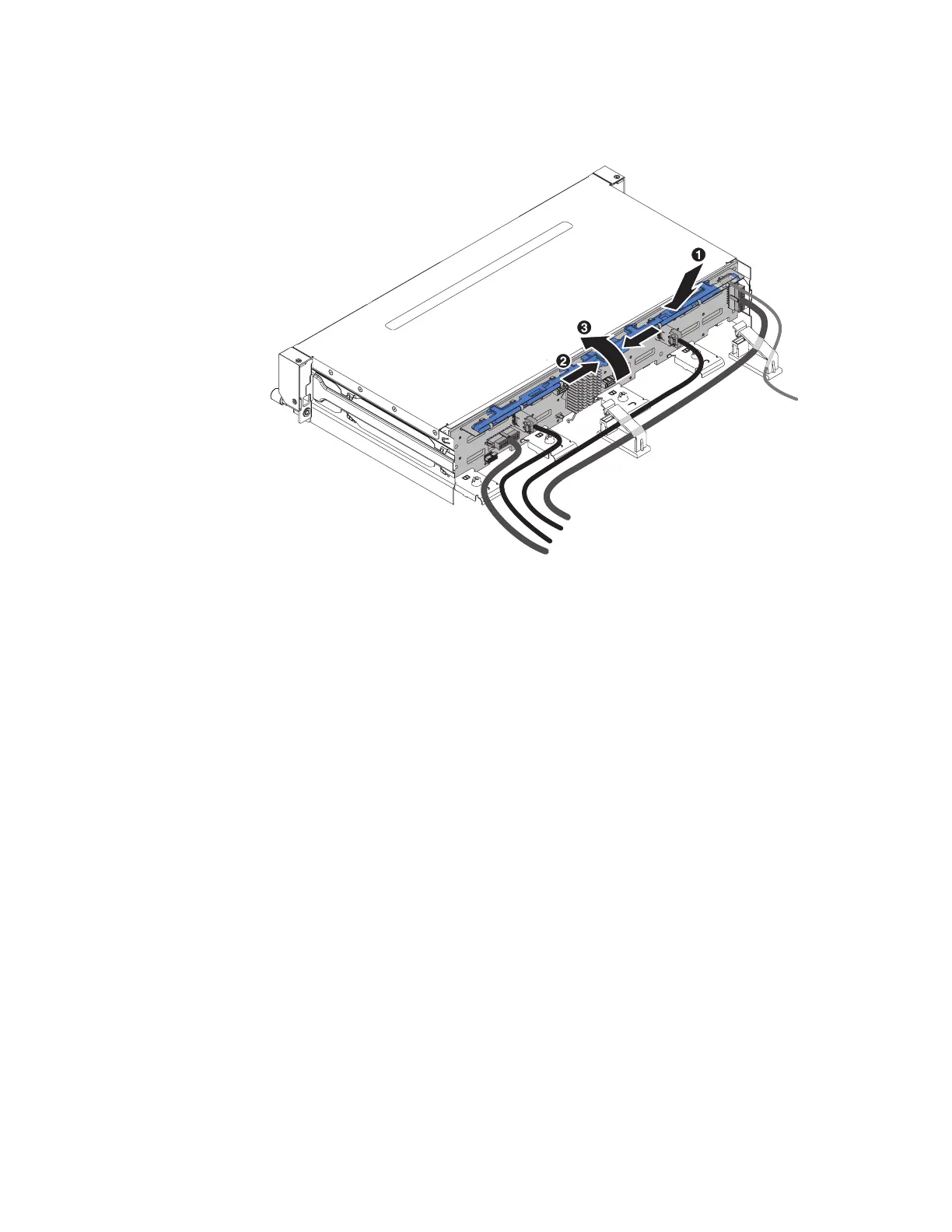

Figure 147. Hot-swap hard disk drive backplane installation
Chapter 6. Removing and replacing components 233

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
