IBM System x3650 M4 BD Type 5466 User Manual

Server components

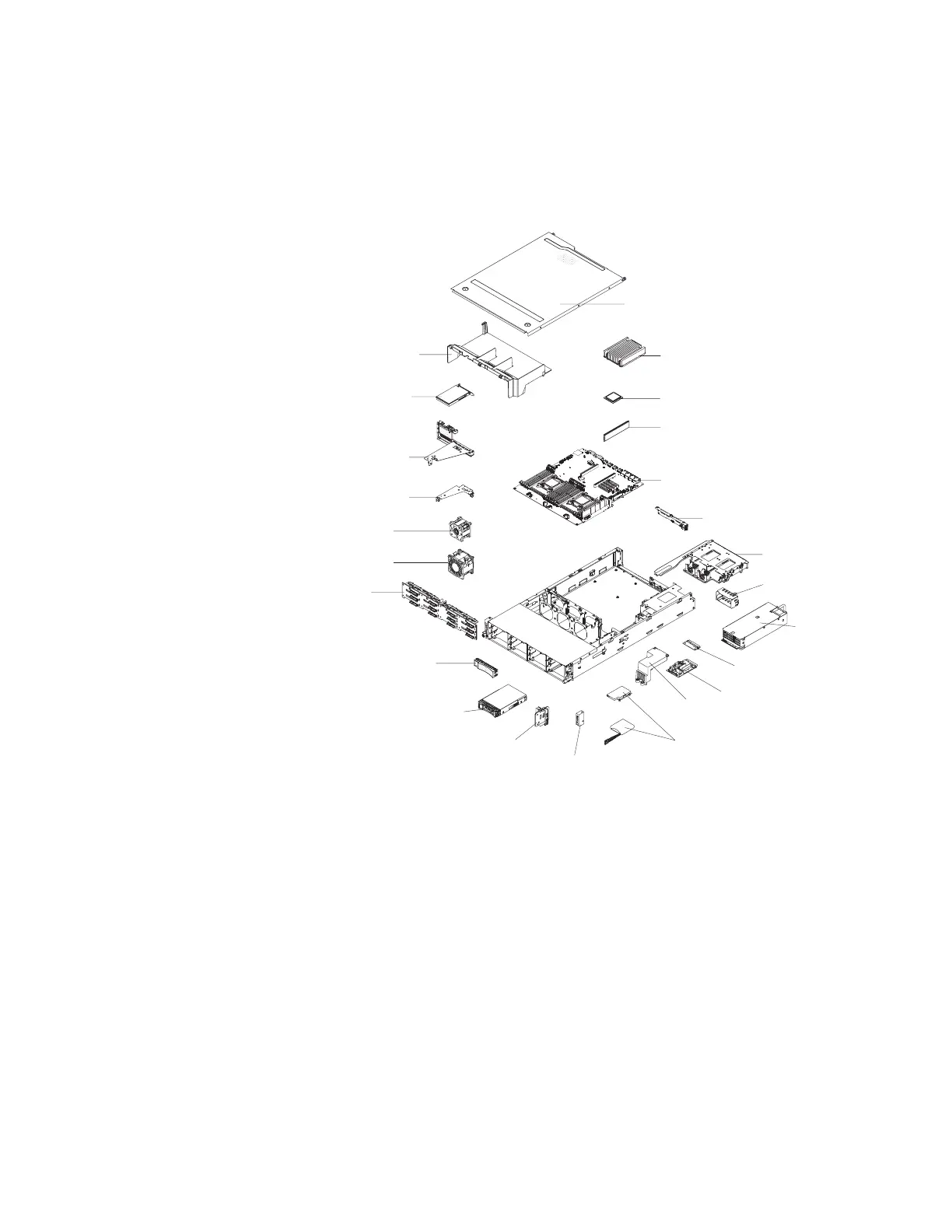

The following illustration shows the major components in the server.
The illustrations in this document might differ slightly from your hardware.
Top cover
Air baffle
Microprocessor
DIMM
System board
3.5-inch SAS/SATA rear
backplane
3.5-inch hard disk
drive cage
Power-supply filler
Power-supply
Top power-supply
paddle card
240VA cover
Lower power-supply
paddle card
ServeRaid adapter
battery
Battery carrier
3.5-inch hot-swap
hard disk drive
Front Fan
1U PCI riser-card
assembly 2
Adapter
3.5-inch hot-swap
hard disk drive filler
3.5-inch SAS/SATA front
backplane with 12 hard
disk drives
1U PCI riser-card
assembly 1
Heat sink
Rear fan
Operator information panel
Figure 10. Server components
Chapter 2. Installing optional devices 25

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
