Replacing the server top cover
Use this information to replace the server top cover.
About this task
To install the server top cover, complete the following steps:
Procedure
1. Make sure that all cables, adapters, and other components are installed and
seated correctly and that you have not left loose tools or parts inside the server.
Also, make sure that all internal cables are correctly routed.
2. Align the cover over the server (toward the rear of the server) until the cover
edges slip into position over the chassis.
Attention: Before sliding the cover forward, make sure that all the tabs on
both the front, rear, and side of the cover engage the chassis correctly. If all the
tabs do not engage the chassis correctly, it will be hard to remove the server
top cover in the future.
3. Slide the cover forward toward the front of the server until the cover is
completely closed.
4. Tighten the thumbscrews on the rear of the cover to secure the cover to the
chassis.
5. Install the server into the rack enclosure and tighten the two front thumbscrews
to secure the server in the rack.
Attention: Two or more people are required to install the system in a rack
cabinet.
6. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the server.

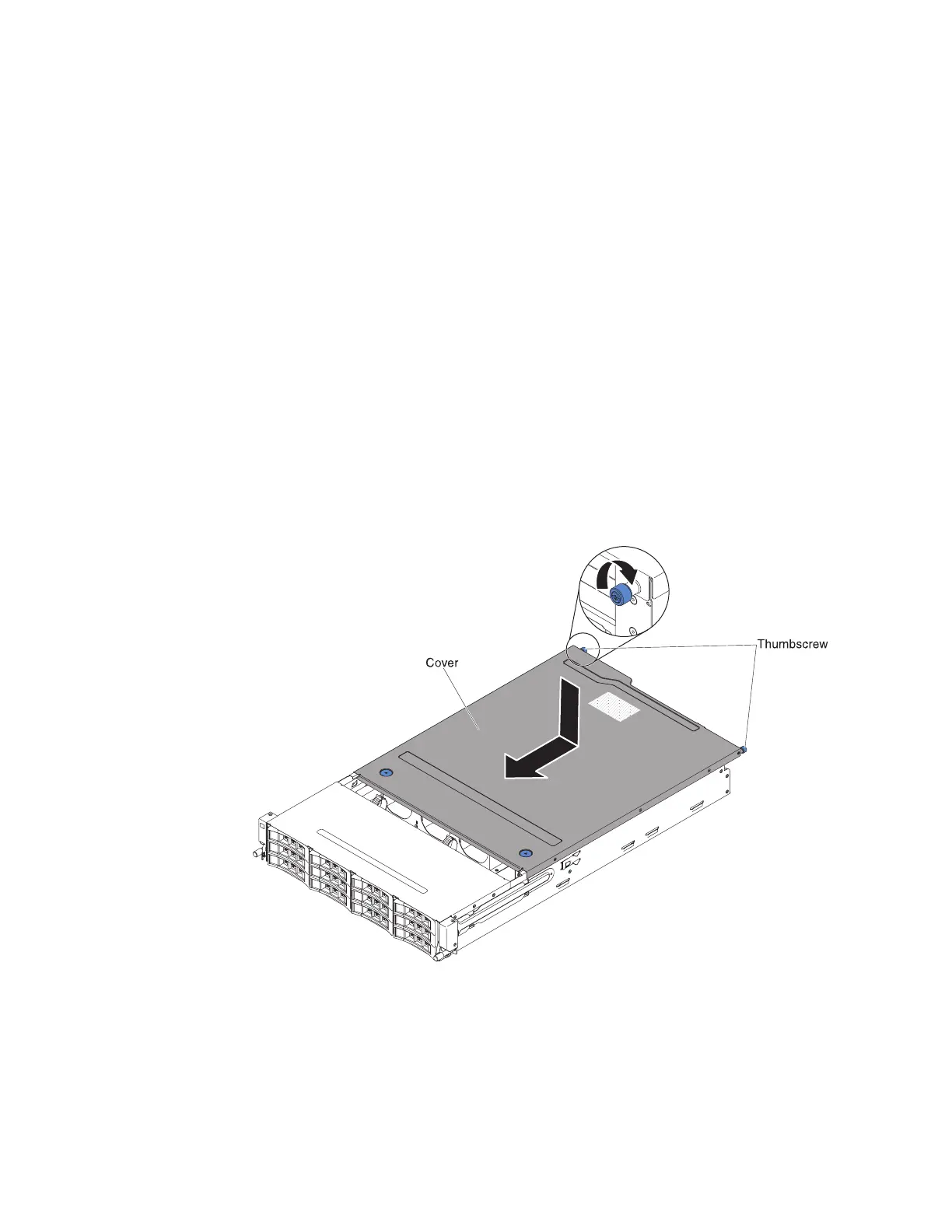

Figure 188. Cover installation
260 System x3650 M4 BD Type 5466: Installation and Service Guide
