IBM System x3650 M4 BD Type 5466 User Manual

Attention:
v Two or more people are required to remove the system from a rack cabinet.
v To completely remove the server from the rack, press the latches on the sides
on the slide rails.
4. Loosen the two thumbscrews that secure the cover to the chassis.
5. Press on the two blue grip points and slide the cover toward the rear; then, lift
the cover off the server. Set the cover aside.
6. If you are instructed to return the server top cover, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.

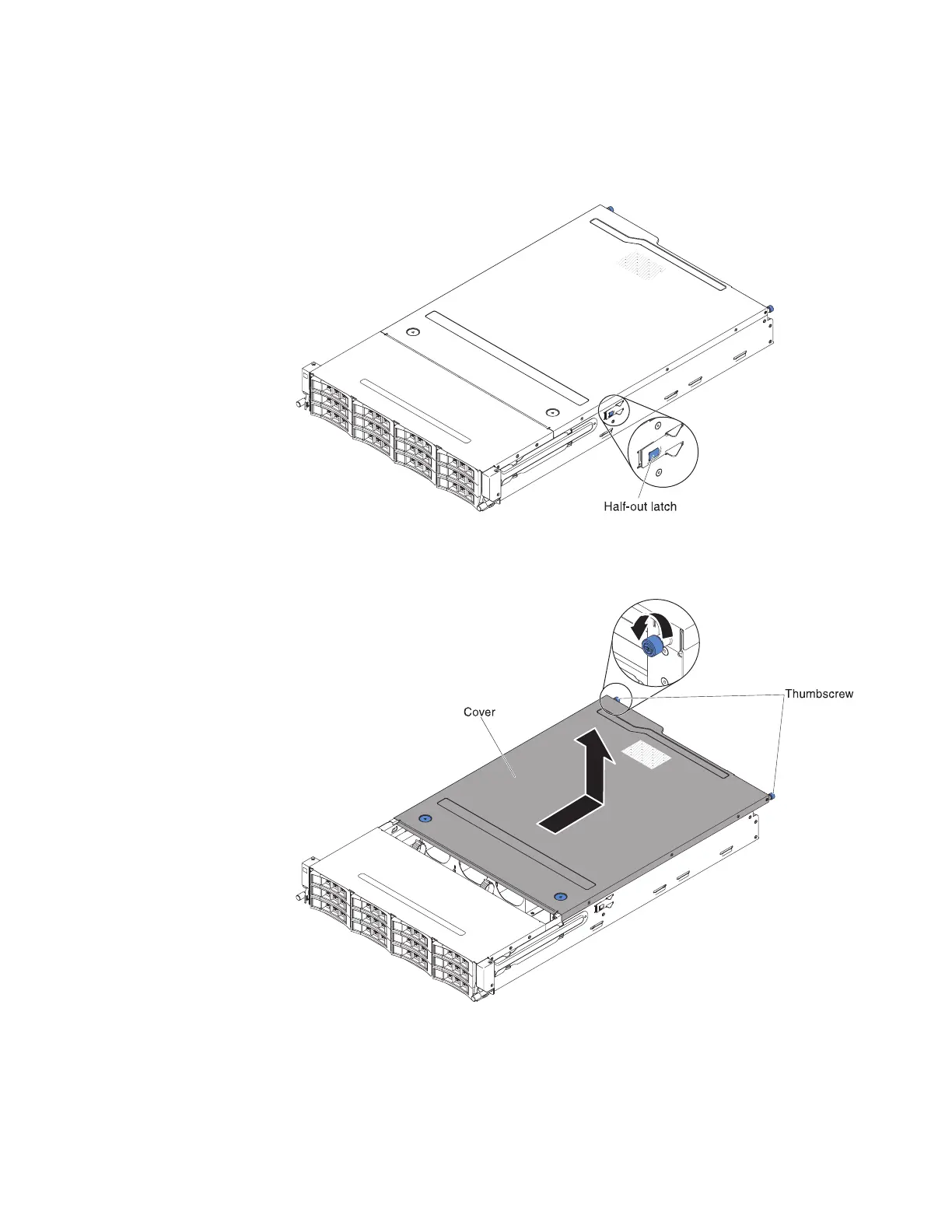

Figure 186. Half-out latch
Figure 187. Cover removal
Chapter 6. Removing and replacing components 259

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
