8. Place the adapter on a flat, static-protective surface.
9. If you are instructed to return the adapter, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
Replacing an adapter on the PCI riser-card assembly
Use this information to replace an adapter on the PCI riser-card assembly.
About this task
Notes:
v The instructions in this section apply to any supported adapter (for example,
video graphics adapters or network adapters).
v See “Installing an adapter on the PCI riser-card assembly” on page 46 for
additional notes and information that you must consider when you install an
adapter in the server.
v Do not set the maximum digital video adapter resolution above 1600 x 1200 at
75 Hz for an LCD monitor. This is the highest resolution that is supported for
any add-on video adapter that you install in the server.
v Any high-definition video-out connector or stereo connector on any add-on
video adapter is not supported
To replace an adapter, complete the following steps:
Attention: When you install an adapter, make sure that the adapter is correctly
seated in the PCI riser-card assembly and that the PCI riser-card assembly is
securely seated in the riser-card connector on the system board before you turn on
the server. An incorrectly seated adapter might cause damage to the system board,
the PCI riser-card assembly, or the adapter.

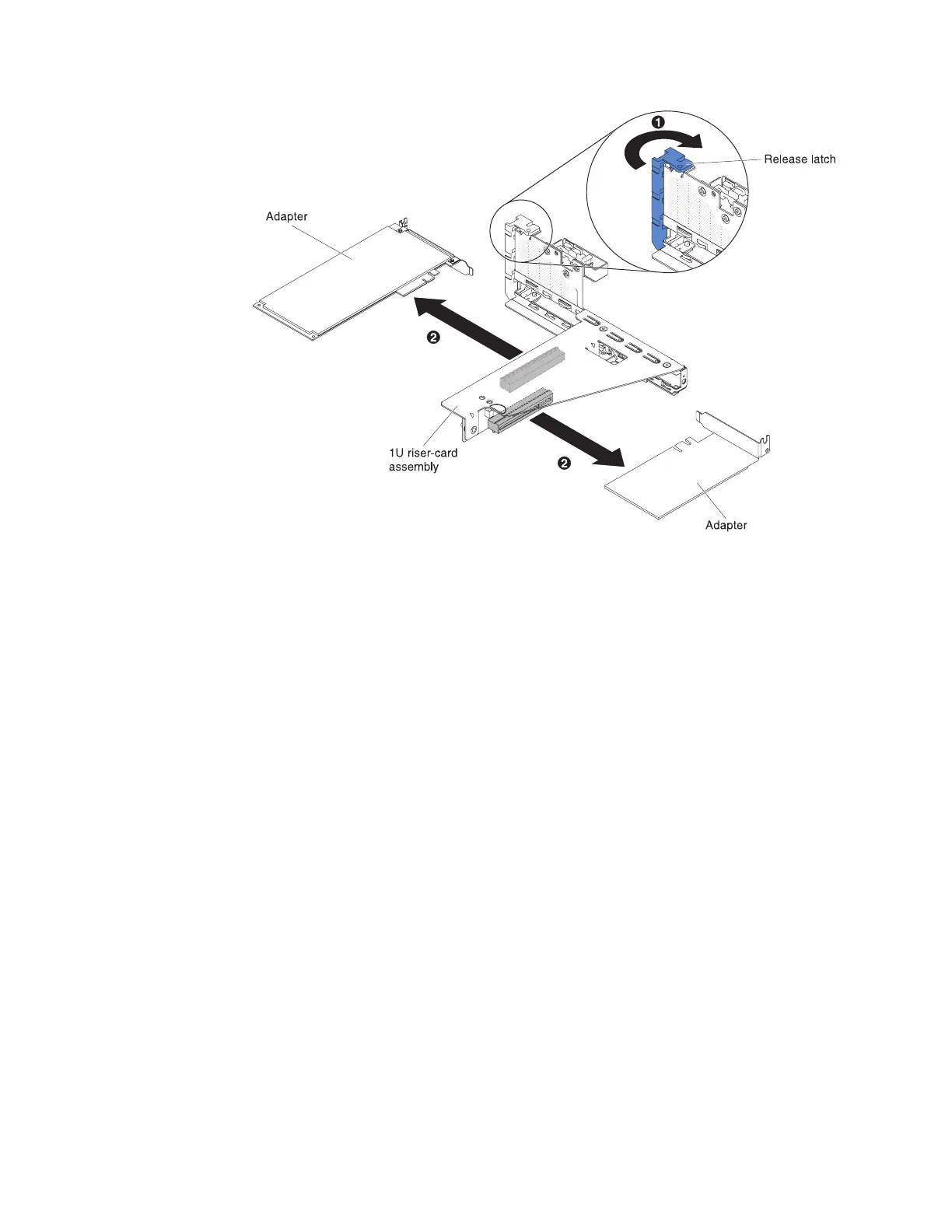

Figure 92. Adapter removal
180 System x3650 M4 BD Type 5466: Installation and Service Guide
