Procedure
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 32.
2. Follow the cabling instructions, if any come with the adapter. Route the adapter
cables before you install the adapter.
3. The following illustrates the steps for installing an adapter on the PCI
riser-card assemblies:
v For PCI riser-card assembly 1:
a. Rotate the retention latch to the open position. Insert the adapter into the
PCI riser-card assembly, aligning the edge connector on the adapter with
the connector on the PCI riser-card assembly. Press the edge of the
connector firmly into the PCI riser-card assembly. Make sure that the
adapter snaps into the PCI riser-card assembly securely.
b. Rotate the retention latch to the close position. Make sure the retention
latch engages the adapter securely.
4. Install the PCI riser-card assembly in the server (see “Replacing a PCI riser-card
assembly” on page 208).
5. Perform any configuration tasks that are required for the adapter.
6. Install the cover (see “Replacing the server top cover” on page 260).
7. Install the server in the rack cabinet (see the Rack Installation Instructions that
come with the server for instructions).
8. Reconnect the power cord and any cables that you removed.
9. Turn on the peripheral devices and the server.

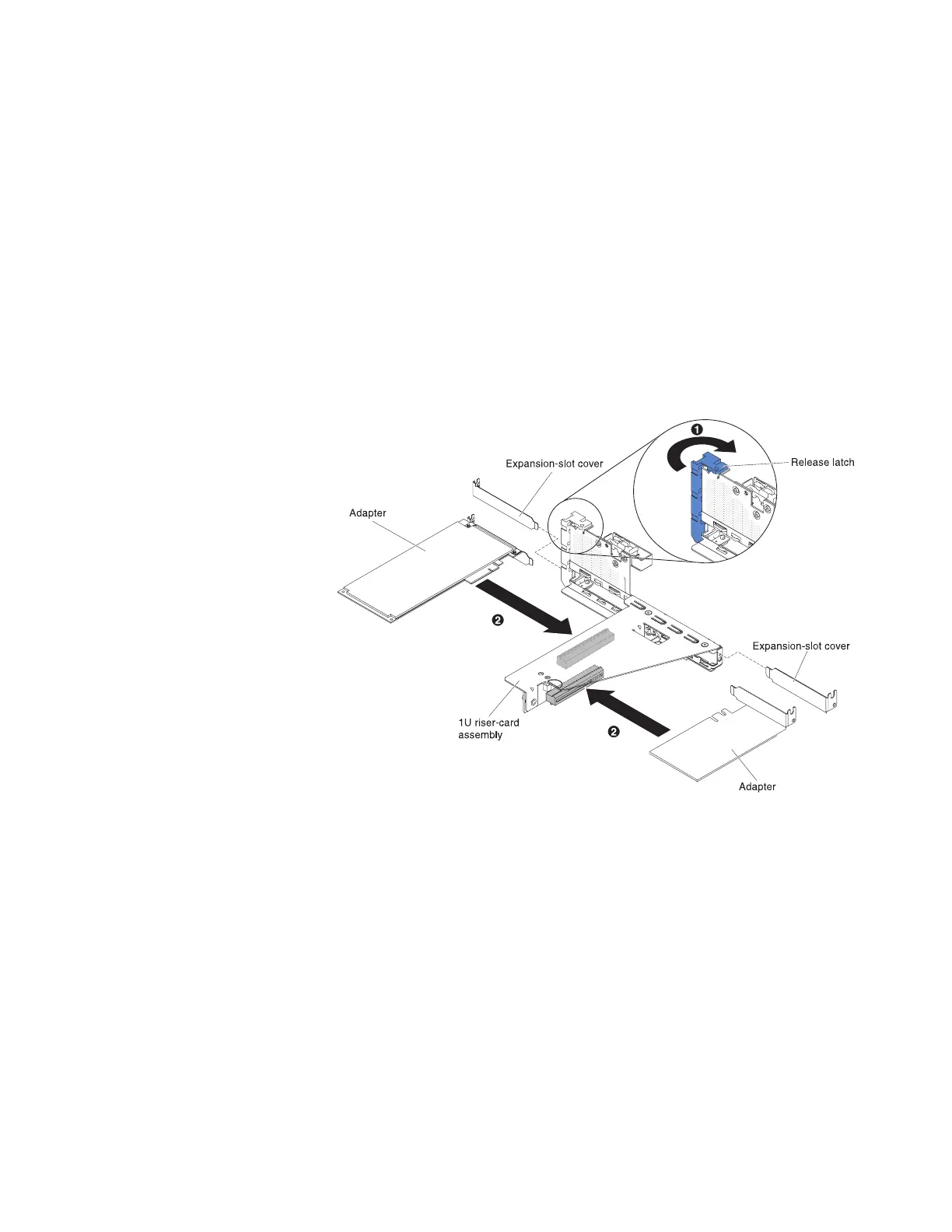

Figure 93. Adapter installation
Chapter 6. Removing and replacing components 181
