IBM System x3650 M4 BD Type 5466 User Manual

Removing a USB embedded hypervisor flash device
Use this information to remove a USB embedded hypervisor flash device.
About this task
To remove a USB hypervisor key from the server, complete the following steps:
Procedure
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 32.
2. Turn off the server (see “Turning off the server” on page 22) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the server top cover (see “Removing the server top cover” on page
258).
4. Rotate the hot-swap rear hard disk drive cage up (see “Rotating the hot-swap
rear hard disk drive cage up” on page 168.
5. Remove PCI riser-card assembly 1 (see “Removing a PCI riser-card assembly”
on page 206).
6. Locate the USB embedded hypervisor flash device connector on the system
board.
7. Slide the lockbar on the flash device connector to the unlocked position and
pull the USB flash device out of the connector.

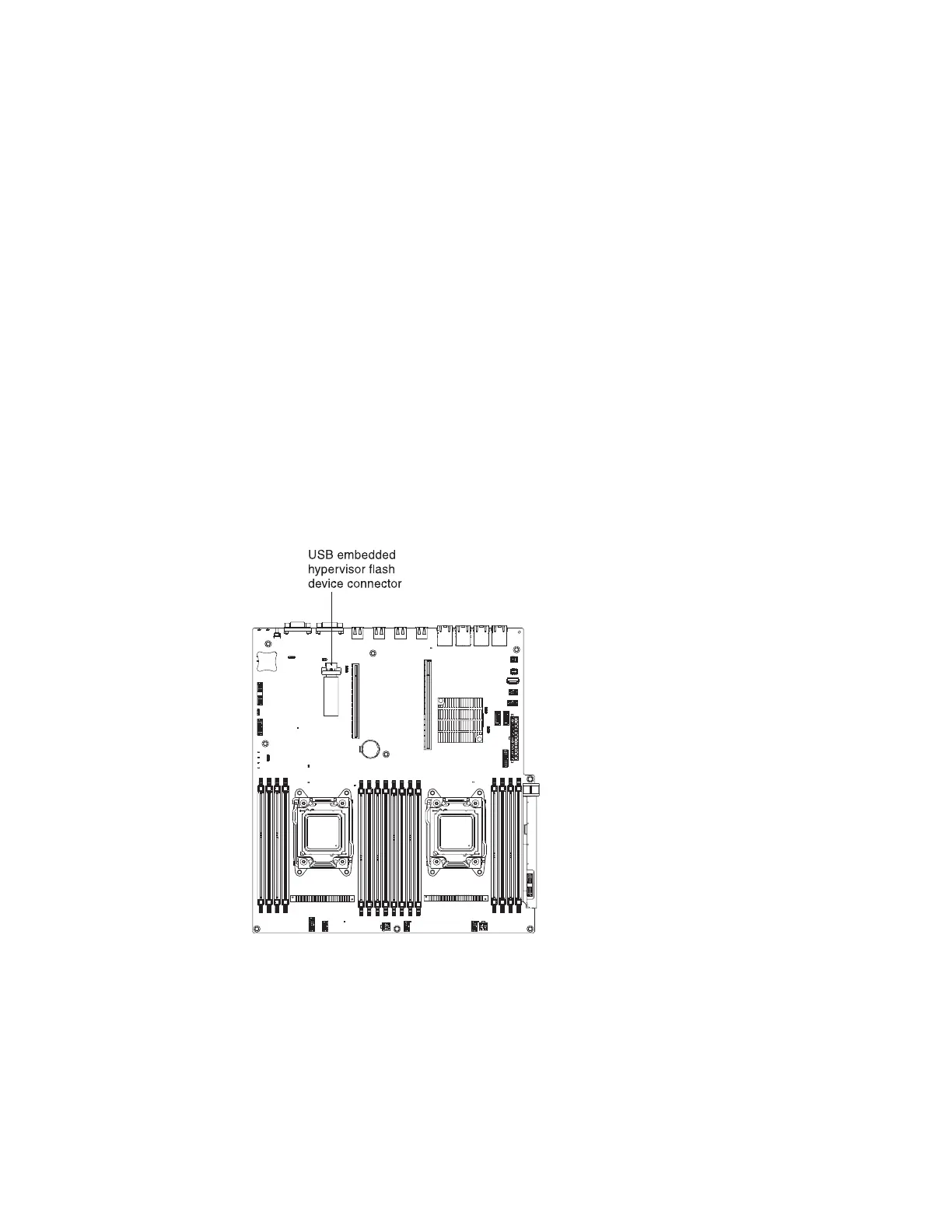

Figure 110. USB embedded hypervisor flash device connector
198 System x3650 M4 BD Type 5466: Installation and Service Guide
