To remove the hot-swap backplane on the rear hard disk drive cage, complete the
following steps.
Procedure
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 32.
2. Turn off the server (see “Turning off the server” on page 22) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables from the server.
3. Remove the server top cover (see “Removing the server top cover” on page 35).
4. Remove all hot-swap hard disk drives in the rear hard disk drive cage (see
“Removing a hot-swap hard disk drive” on page 166.
5. Lift the backplane out of the rear hard disk drive cage.

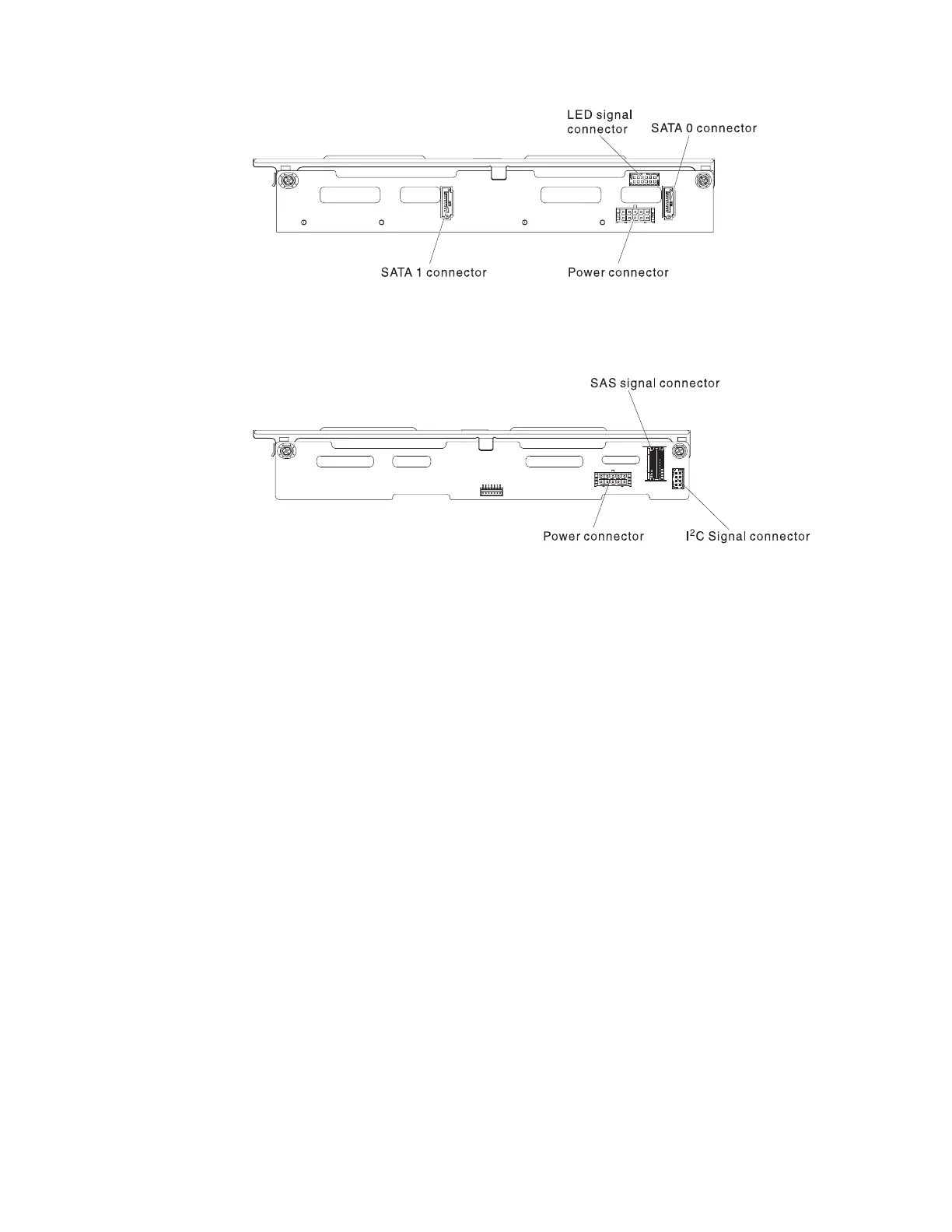

Figure 148. Type1-SATA
Figure 149. Type2-SAS
234 System x3650 M4 BD Type 5466: Installation and Service Guide
