IBM System x3650 M4 BD Type 5466 User Manual

6. Disconnect the cables.
v Type1-SATA
– Disconnect the LED signal, SATA signal and power cables from the
backplane. Make note of which cable is connected to which connector.
v Type 2 - SAS
– Disconnect the I
2
C signal, SAS signal and power cables from the
backplane. Make note of which cable is connected to which connector.
7. If you are instructed to return the backplane, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.

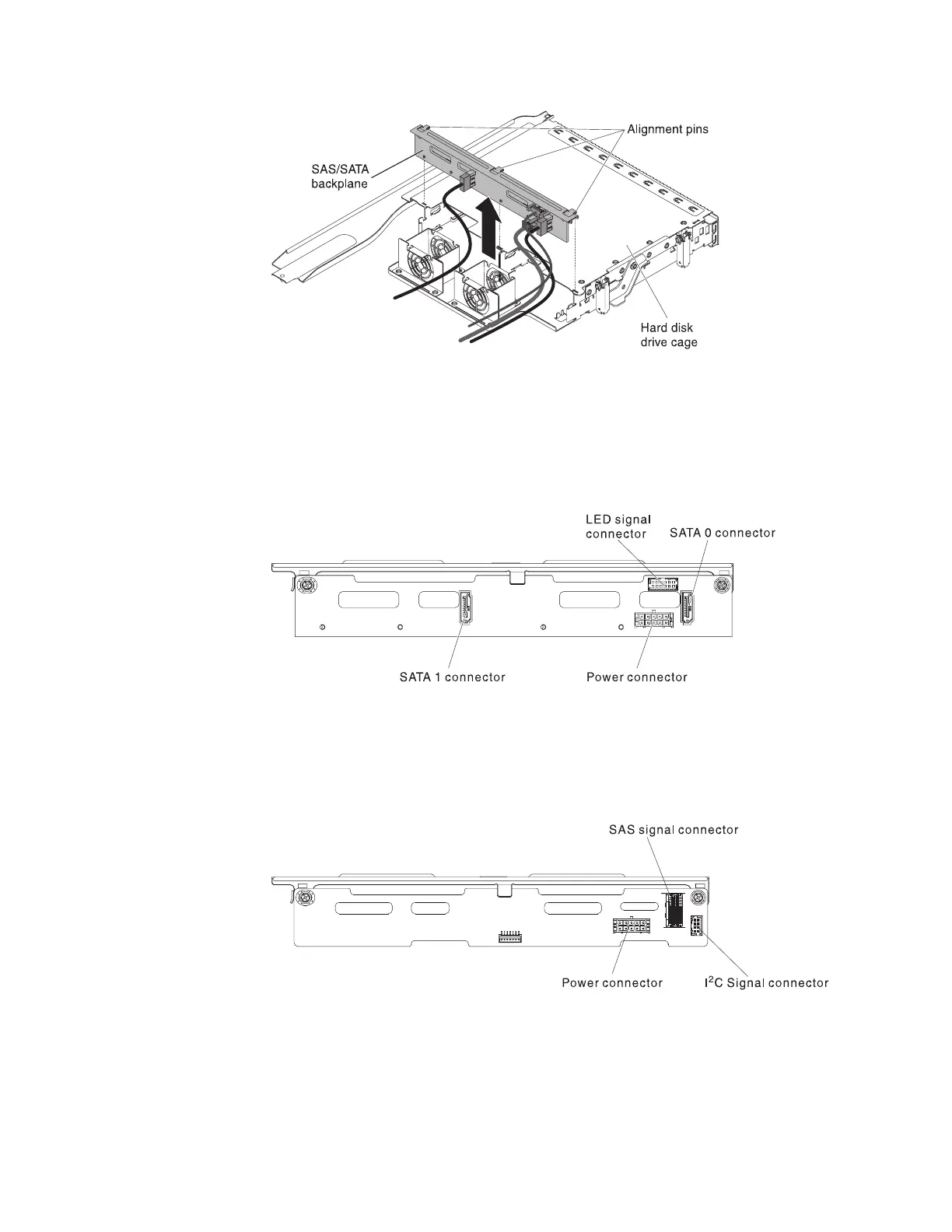

Figure 150. Hot-swap backplane removal
Figure 151. Type1-SATA
Figure 152. Type2-SAS
Chapter 6. Removing and replacing components 235

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
