7. Remove the adapter, if necessary, from the PCI riser-card assembly.
8. If you are instructed to return the PCI riser-card assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.

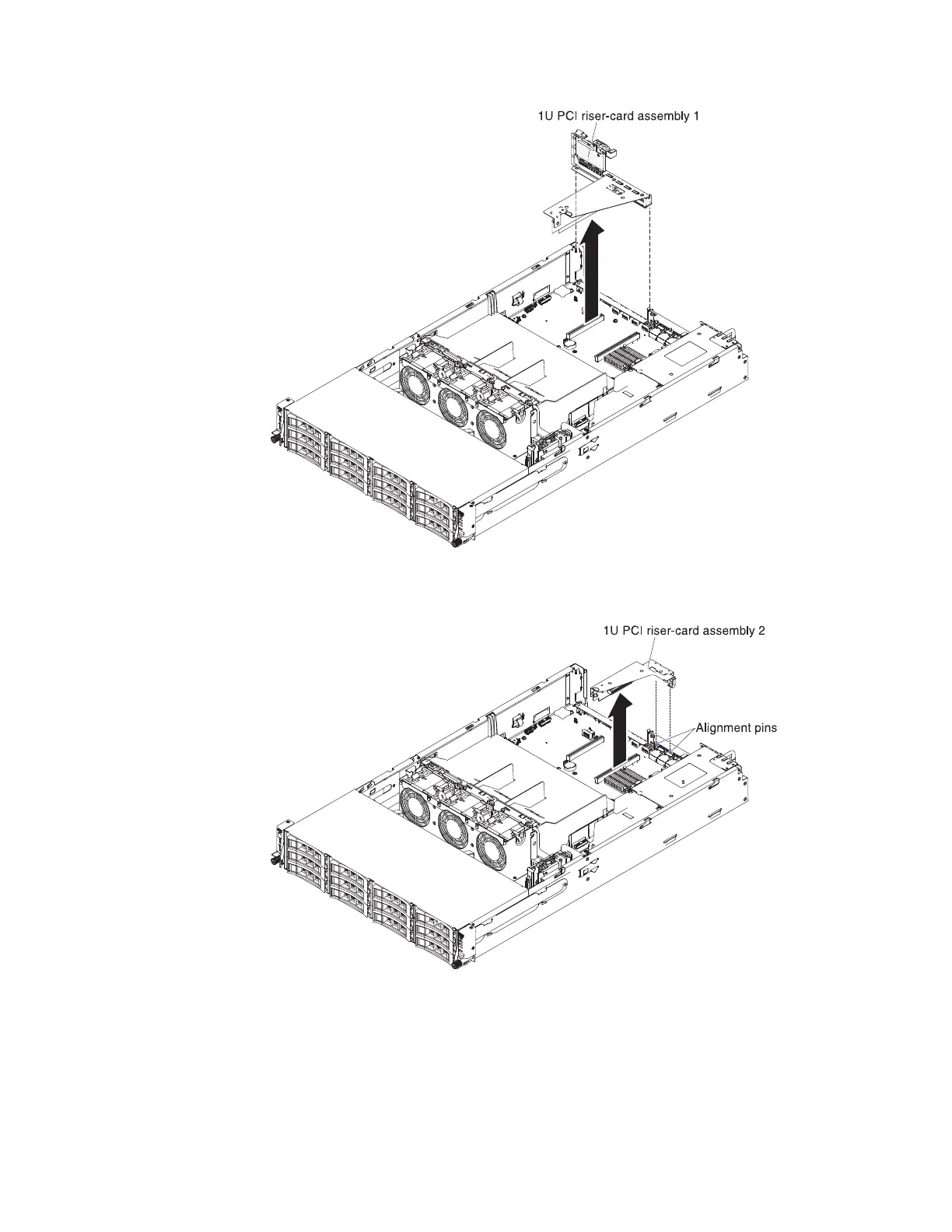

Figure 118. PCI riser-card assembly 1 removal
Figure 119. PCI riser-card assembly 2 removal
Chapter 6. Removing and replacing components 207

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the IBM System x3650 M4 BD Type 5466 and is the answer not in the manual?

IBM System x3650 M4 BD Type 5466 Specifications

General IconGeneral
Form Factor2U Rack
Operating System SupportMicrosoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
MemoryUp to 768GB DDR3
StorageUp to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply750W
Network InterfaceIntegrated quad-port Gigabit Ethernet
RAID SupportRAID 0, 1, 10
Remote ManagementIBM IMM2
ProcessorIntel Xeon E5-2600 v2 series
