To install a DIMM, complete the following steps:
Note: The odd-numbered DIMM connectors are white-colored, while the
even-numbered DIMM connectors are black-colored.
Procedure
1. Read the safety information that begins on page “Safety” on page vii and
“Installation guidelines” on page 32.
2. Turn off the server (see “Turning off the server” on page 22) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the server top cover (see “Removing the server top cover” on page
258).
4. Carefully flip open the retaining clip on each end of the DIMM connector.
Attention: To avoid breaking the retaining clips or damaging the DIMM
connectors, open and close the clips gently.

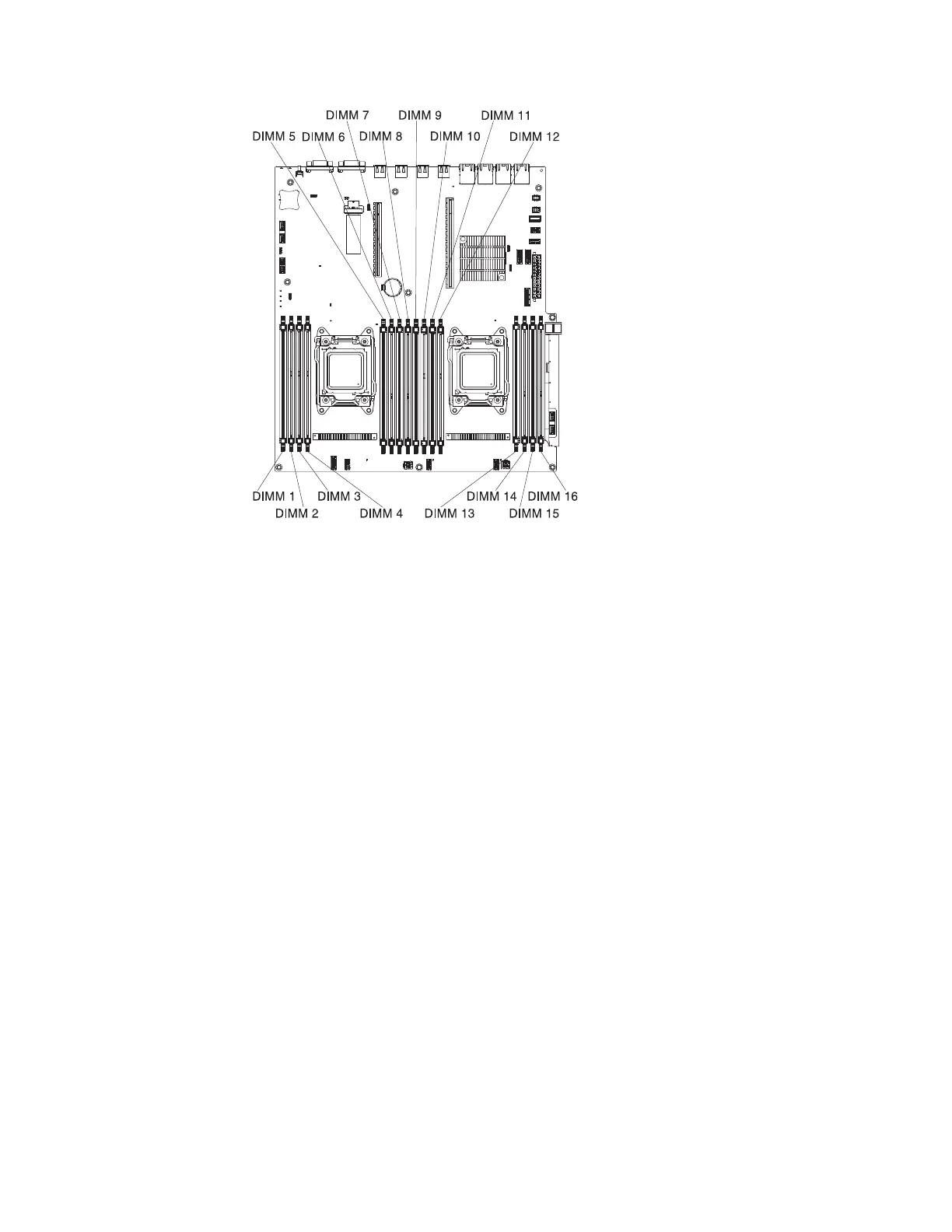

Figure 99. DIMM connectors
188 System x3650 M4 BD Type 5466: Installation and Service Guide
