9. Install PCI riser-card assembly 1 (see “Replacing a PCI riser-card assembly” on
page 208).
10. Rotate the hot-swap rear hard disk drive cage down (see “Rotating the
hot-swap rear hard disk drive cage down” on page 169).
11. Install the server top cover (see “Replacing the server top cover” on page 260).
12. Reconnect the power cord and any cables that you removed.
13. Turn on the peripheral devices and the server.
Note: You will have to configure the server to boot from the hypervisor USB
drive. See “Configuring the server” on page 88 for information about enabling
the hypervisor memory key.

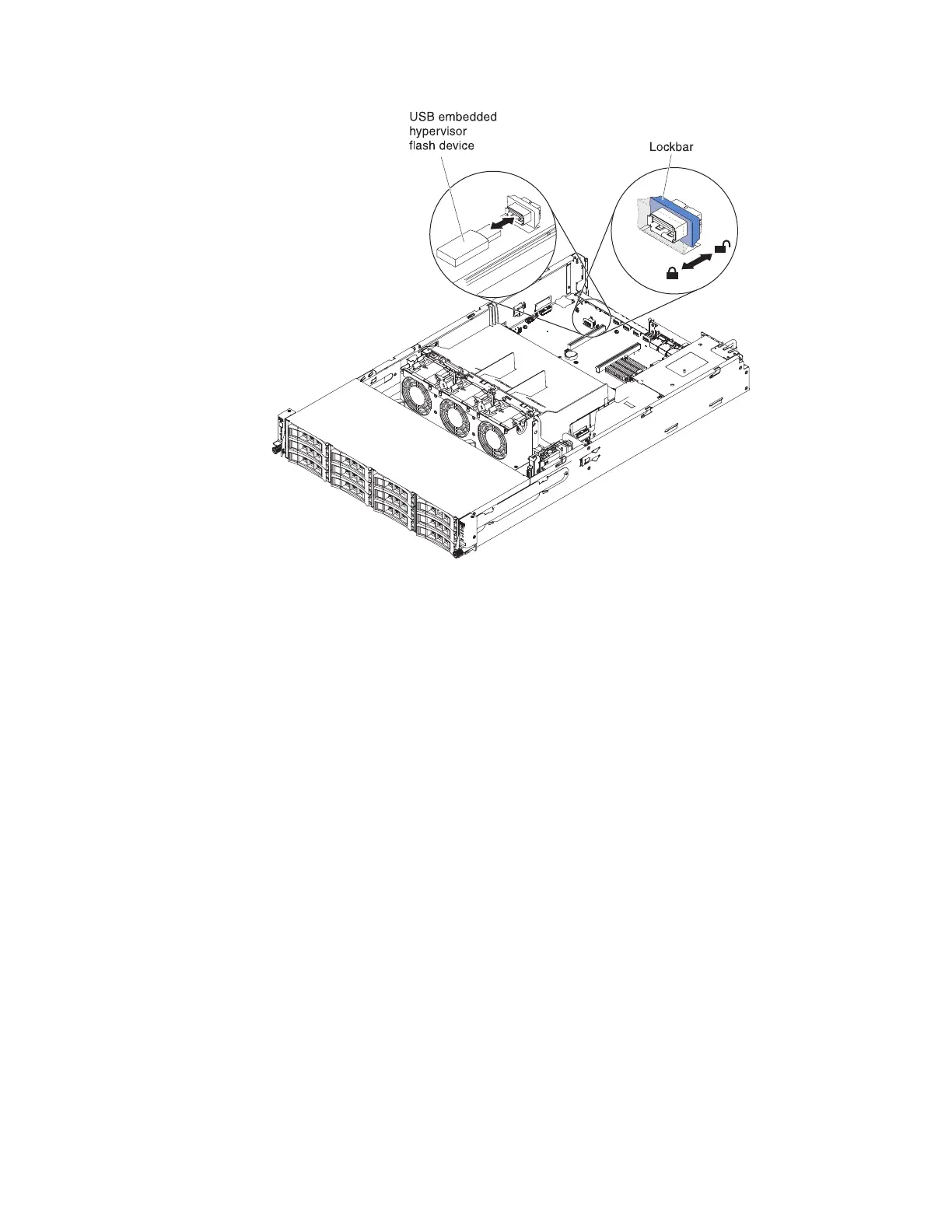

Figure 113. USB embedded hypervisor flash device installation
Chapter 6. Removing and replacing components 201

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
