Procedure
1. Follow any special handling and installation instructions that come with the
replacement battery.
2. Insert the new battery:
a. Position the battery so that the positive (+) symbol is facing you.
b. Place the battery into its socket, and press the battery press the battery
toward the housing until it clicks into place. Make sure that the battery clip
holds the battery securely.
3. Install the PCI riser-card assembly (see “Replacing a PCI riser-card assembly”
on page 208).
4. Install the cover (see “Replacing the server top cover” on page 260).
5. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the server.

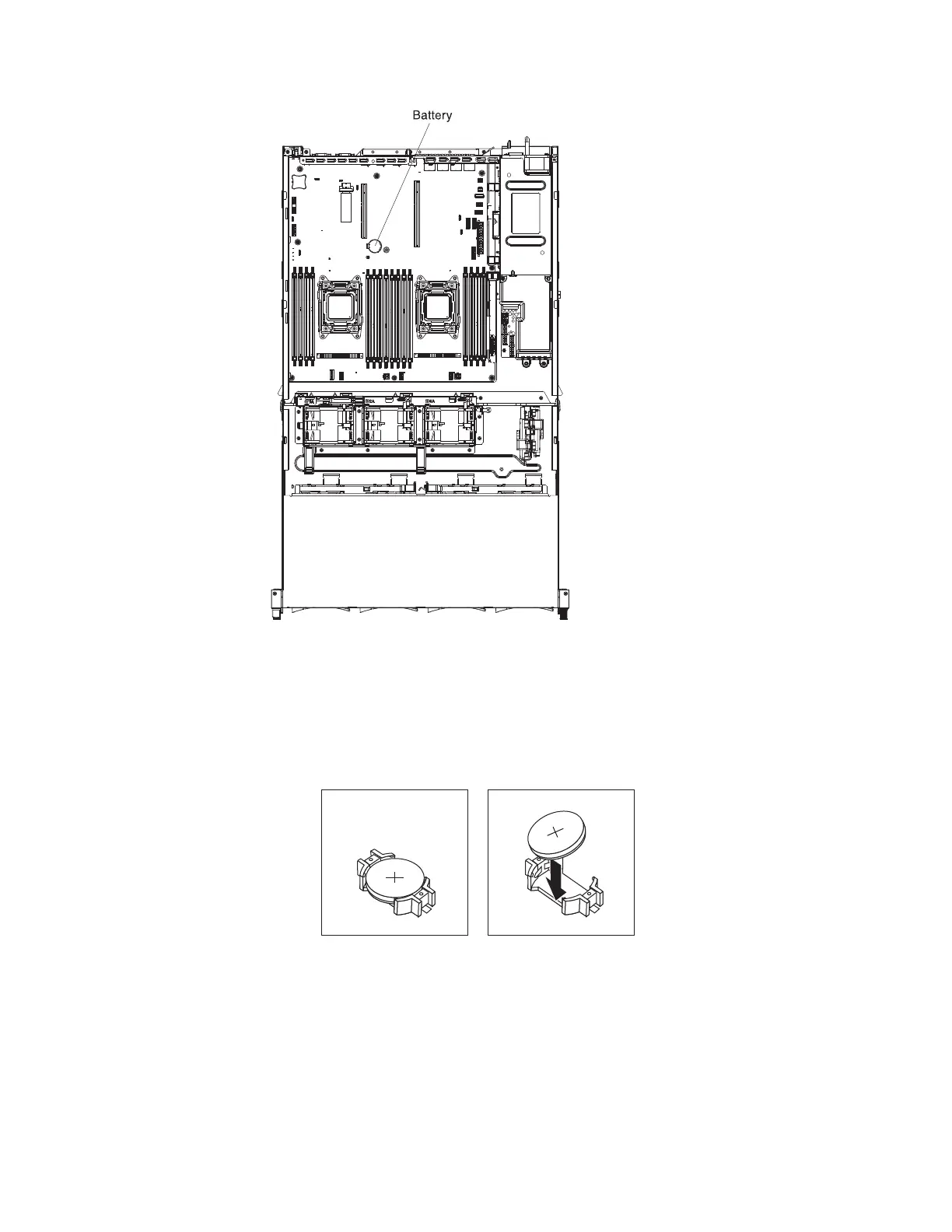

Figure 123. Battery location
Chapter 6. Removing and replacing components 213
