c. Using the following instructions for your installation tool to remove the
microprocessor.
v If using Installation Tool A, gently twist the handle clockwise to the
closed position and lift the microprocessor out of the socket.
v If using Installation Tool B, gently twist the handle of the installation
tool clockwise until it locks in the “H” or “L” position, depending on the
size of microprocessor, and then lift the microprocessor out of the socket.
d. Lift the microprocessor out of the socket.

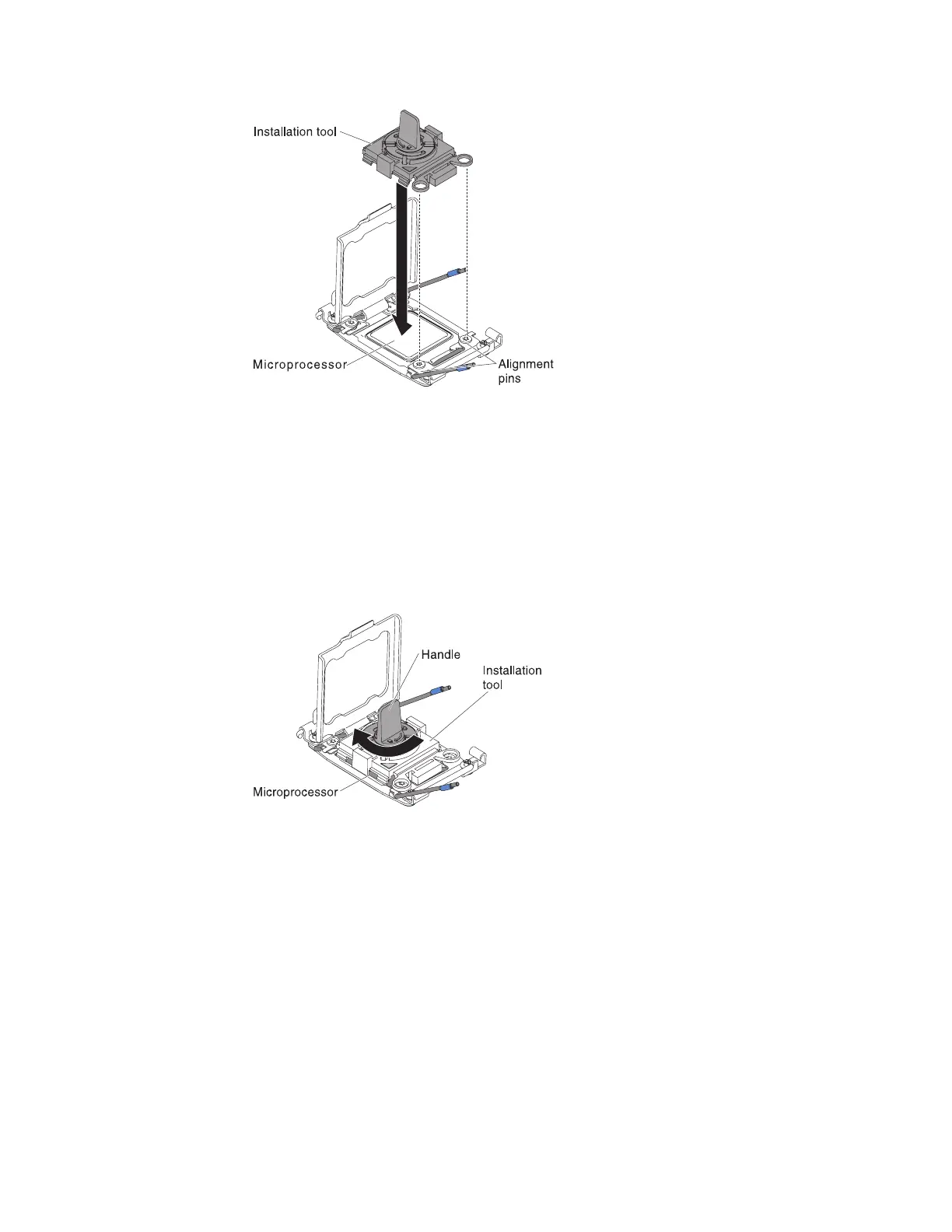

Figure 163. Installation tool alignment
Figure 164. Installation tool handle adjustment
242 System x3650 M4 BD Type 5466: Installation and Service Guide
