IBM System x3650 M4 BD Type 5466 User Manual

a. Close the microprocessor retainer on the microprocessor socket.
b. Identify which release lever is labeled as the first release lever to close and
close it.
c. Close the second release lever on the microprocessor socket.
6. Install a heat sink on the microprocessor:
Attention:
v Do not set down the heat sink after you remove the plastic cover
v Do not touch the thermal grease on the bottom of the heat sink or set down
the heat sink after you remove the plastic cover. Touching the thermal
grease will contaminate it. If the thermal grease is contaminated, call IBM
service and support to request a replacement thermal grease kit. For
information about installing the replacement thermal grease, see “Thermal
grease” on page 73.

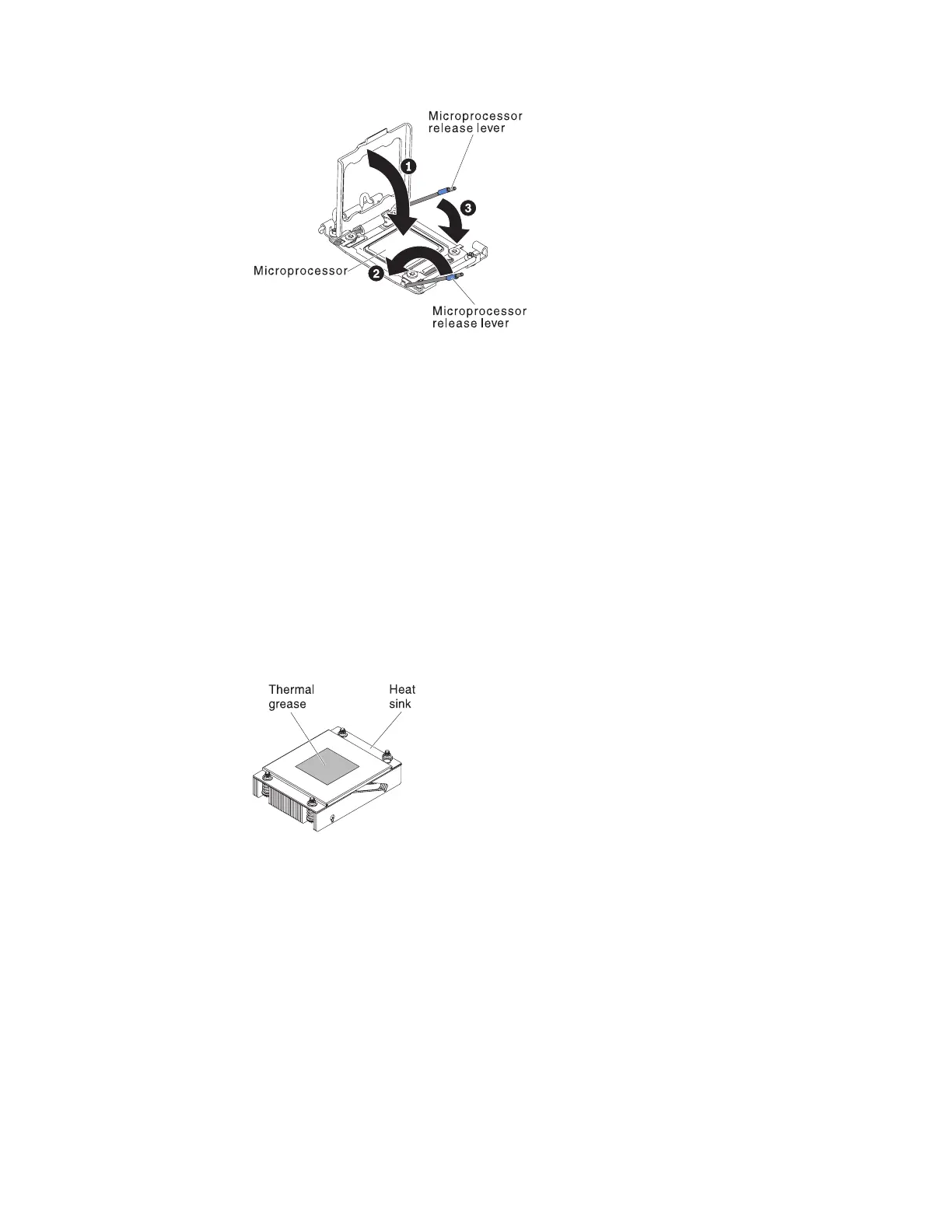

Figure 173. Microprocessor socket levers and retainer engagement
Figure 174. Heat-sink
248 System x3650 M4 BD Type 5466: Installation and Service Guide

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
