5. Remove PCI riser-card assembly 1 or 2 (see “Removing a PCI riser-card

assembly” on page 37).

6. The following illustrates the steps for removing an adapter from the PCI

riser-card assemblies:

v For PCI riser-card assembly 1:

a. Rotate the retention latch to the open position.

b. Carefully grasp the ServeRAID adapter by its top edge or upper corners,

and pull the ServeRAID adapter from the PCI riser-card assembly.

v For PCI riser-card assembly 2:

a. Pull the release pin to unlock the retention latch; then rotate the retention

latch to the open position.

b. Carefully grasp the ServeRAID adapter by the edge and pull it out of PCI

riser-card assembly 2.

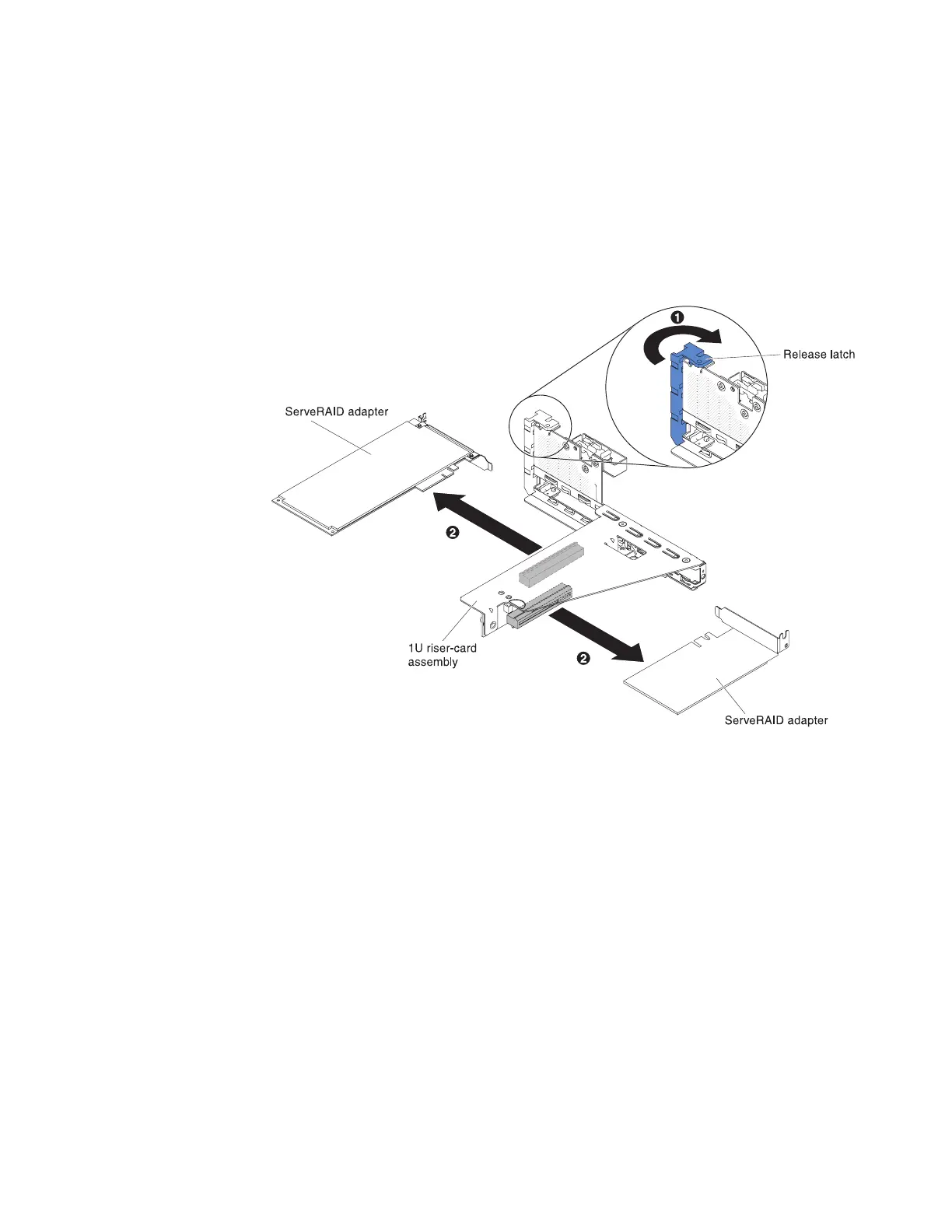

Figure 27. ServeRAID adapter removal

Chapter 2. Installing optional devices 43
