8. Connect any required cables to the adapter.
Attention:
v When you route cables, do not block any connectors or the ventilated space
around any of the fans.
v Make sure that cables are not routed on top of components that are under
the PCI riser-card assembly.
v Make sure that cables are not pinched by the server components.
9. Install the PCI riser-card assembly (see “Installing a PCI riser-card assembly”
on page 81).
10. Perform any configuration tasks that are required for the adapter.
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 79.

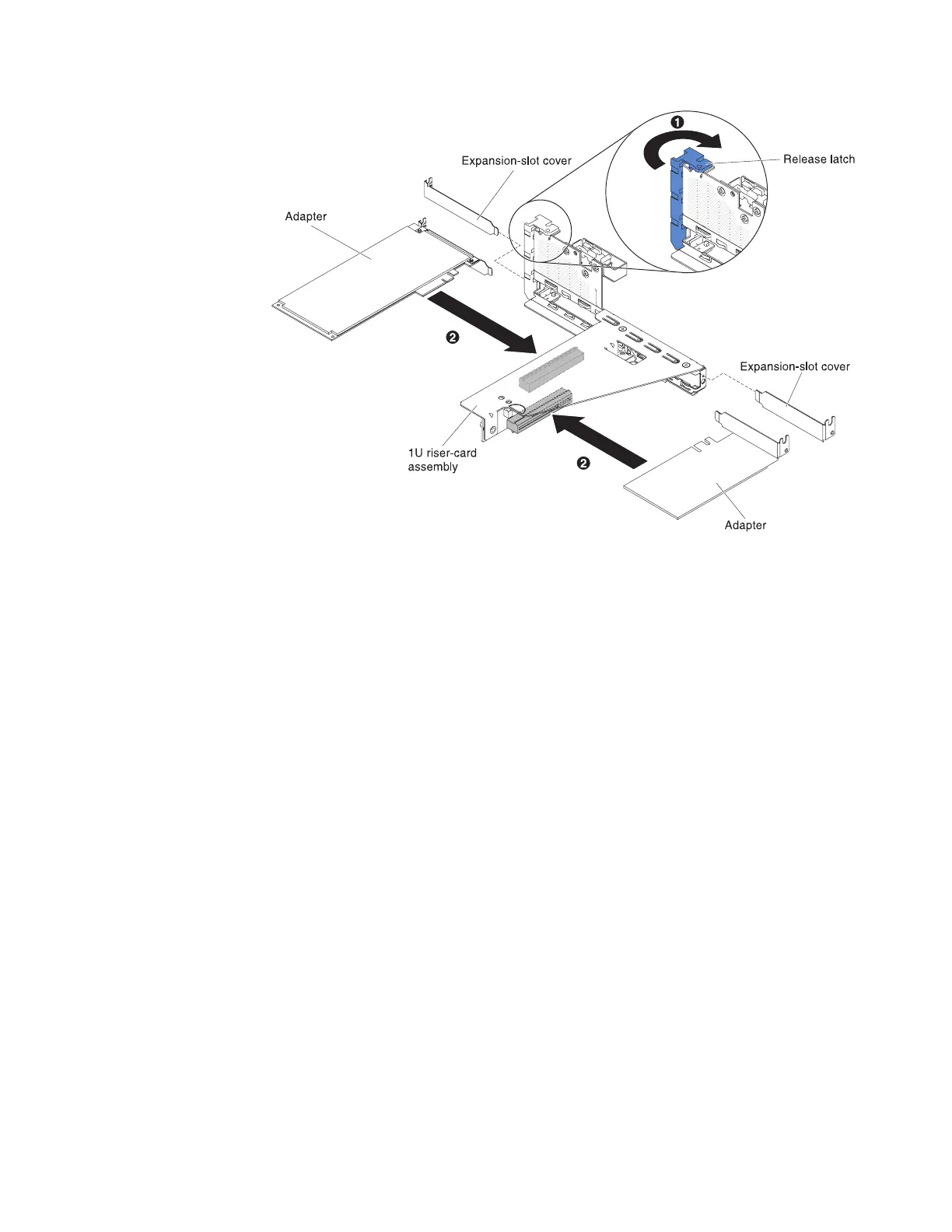

Figure 30. Adapter installation
Chapter 2. Installing optional devices 47
