b. Rotate the retention latch to the close position. Make sure the retention
latch engages the adapter securely.
v For PCI riser-card assembly 2:
a. Pull the release pin to unlock the retention latch; then rotate the retention
latch to the open position.
b. Align the ServeRAID adapter so that the keys align correctly with the
connector on PCI riser-card assembly 2.
c. Insert the ServeRAID adapter into the connector on the riser-card until it
is firmly seated.
Attention: Incomplete insertion might cause damage to the server or the
adapter.
7. Connect any required cables to the ServeRAID adapter.

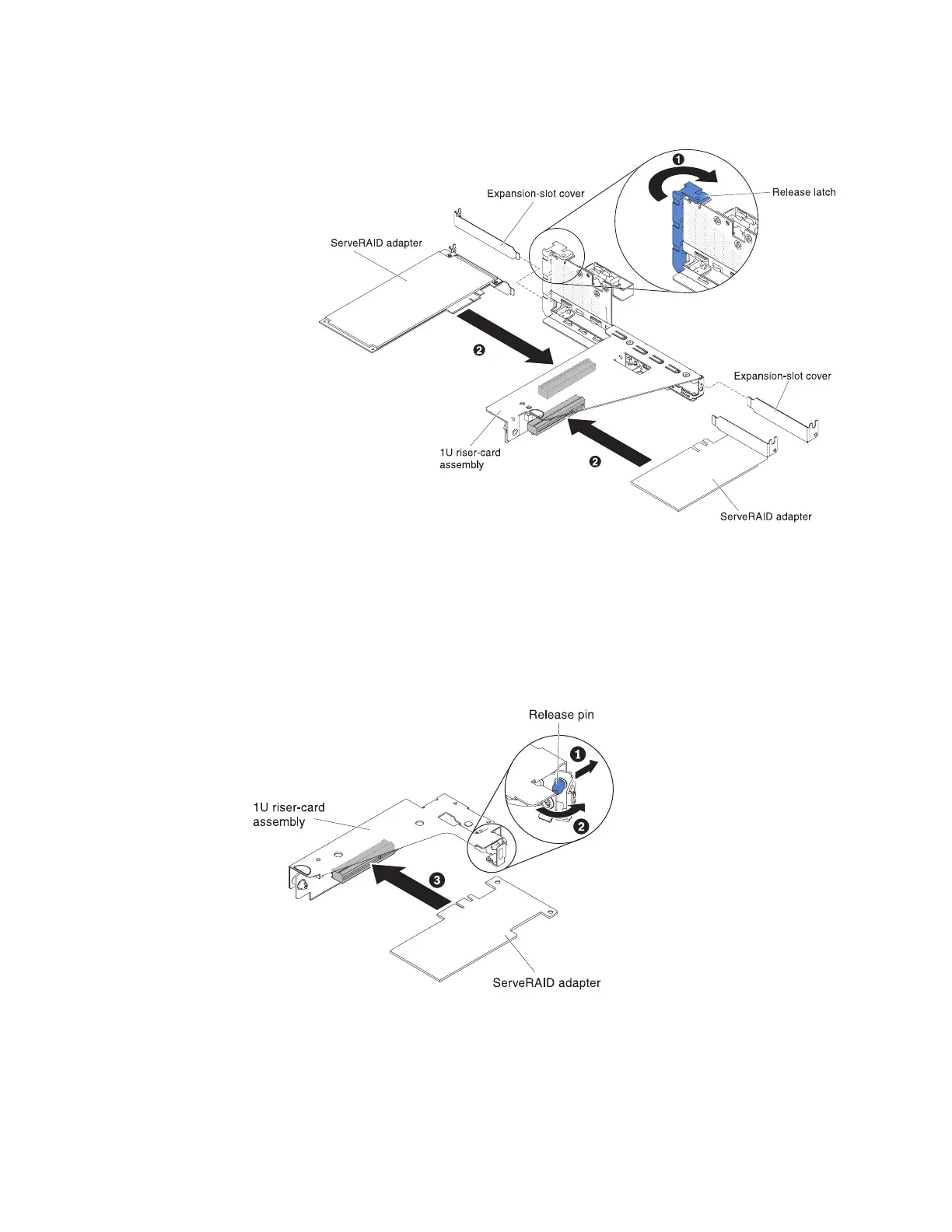

Figure 35. ServeRAID adapter installation
Figure 36. ServeRAID adapter installation
52 System x3650 M4 BD Type 5466: Installation and Service Guide

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
