IBM System x3650 M4 BD Type 5466 User Manual

c. Align the installation tool with the microprocessor socket. The installation
tool rests flush on the socket only if properly aligned.
d. Install the microprocessor using the following instructions for your
installation tool.
v If using Installation Tool A, twist the handle on the microprocessor tool
assembly counterclockwise to the open position to insert the
microprocessor into the socket, and lift the installation tool out of the
socket.
v If using Installation Tool B, twist the handle of the installation tool
assembly counterclockwise until the microprocessor is inserted into the
socket, and lift the installation tool out of the socket. The following
illustration shows the tool handle in the open position.

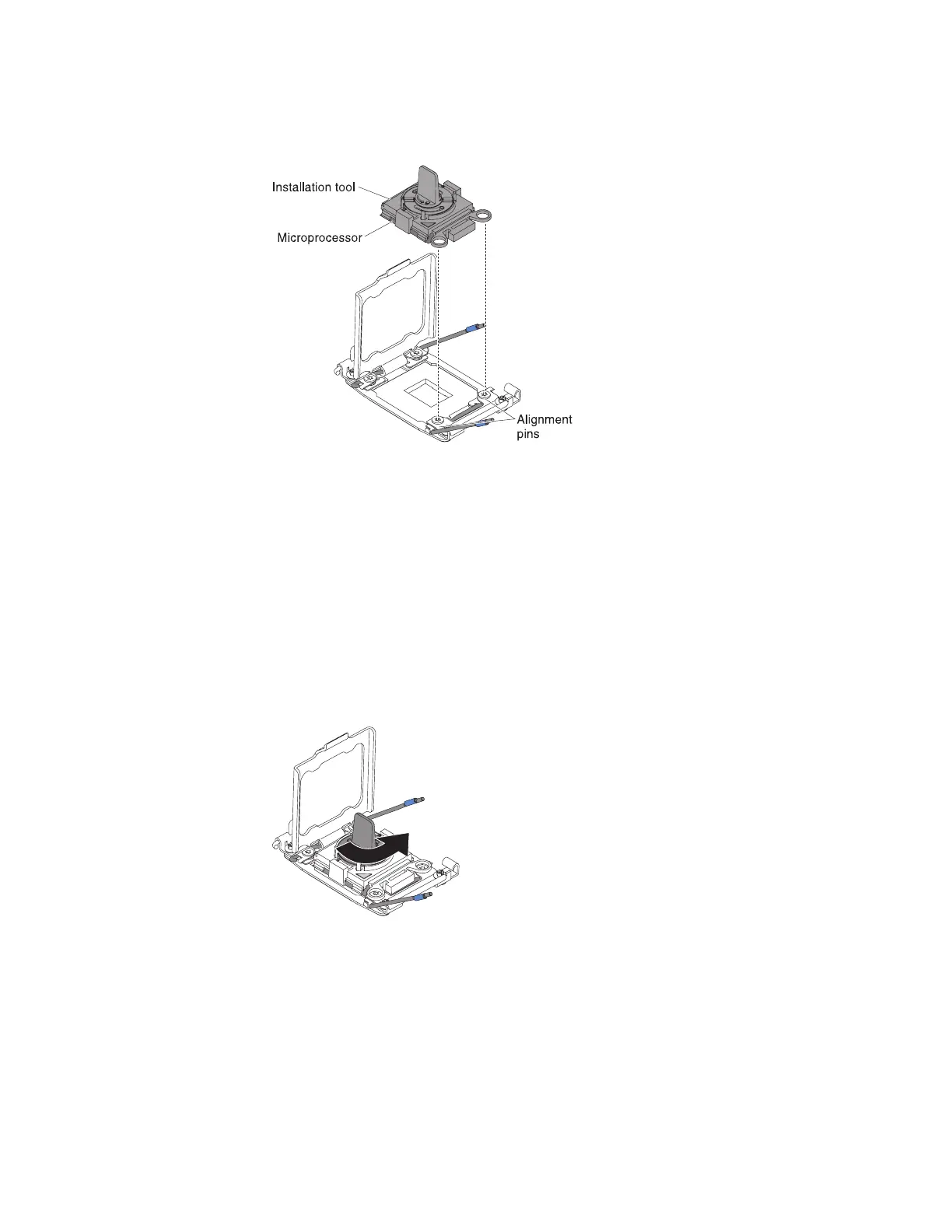

Figure 50. Installation tool alignment
Figure 51. Installation tool handle adjustment
Chapter 2. Installing optional devices 69

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
