a. Remove the plastic protective cover from the bottom of the heat sink.
b. Align the screw holes on the heat sink with the holes on the system board.
c. Place the heat sink on the microprocessor with the thermal-grease side
down.
d. Press firmly on the captive screws and tighten them with a screwdriver.
The follow illustration shows the sequence in tightening the screws, which
is also shown on top of the heat sink. Begin with the screw labeled as "1",
then "2", "3" and finally "4". If possible, each screw should be rotated two
full rotations at a time. Repeat until the screws are tight. Do not
overtighten the screws by using excessive force. If you are using a torque
wrench, tighten the screws to 8.5 Newton-meters (Nm) to 13 Nm (6.3
foot-pounds to 9.6 foot-pounds).
Note: Please use Phillips screw driver No.0 to fasten screws.
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 79.

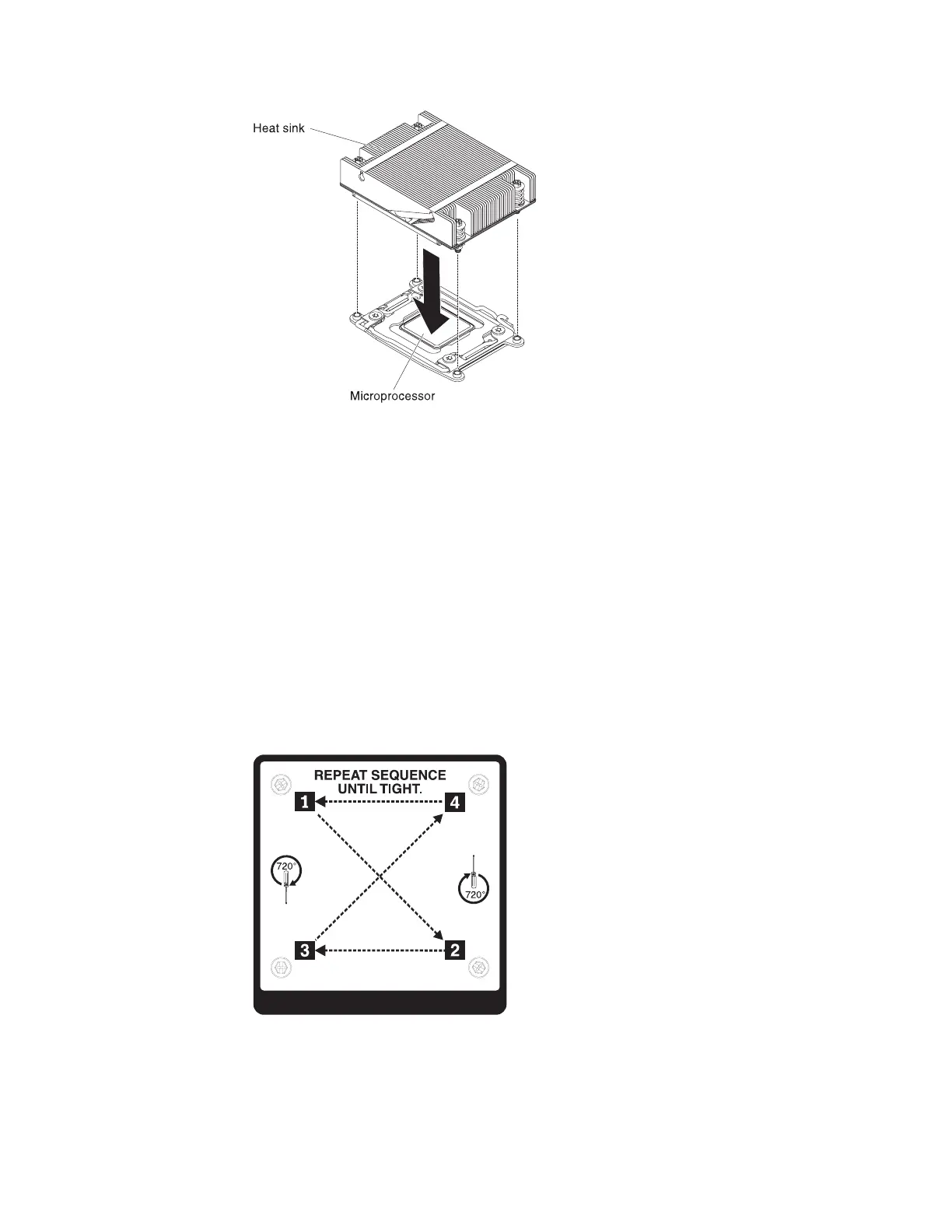

Figure 56. Heat-sink installation
Figure 57. Screws sequence
72 System x3650 M4 BD Type 5466: Installation and Service Guide

IBM System x3650 M4 BD Type 5466 Specifications

General

Form Factor	2U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Memory	Up to 768GB DDR3
Storage	Up to 16x 2.5" hot-swap SAS/SATA HDDs/SSDs
Power Supply	750W
Network Interface	Integrated quad-port Gigabit Ethernet
RAID Support	RAID 0, 1, 10
Remote Management	IBM IMM2
Processor	Intel Xeon E5-2600 v2 series
