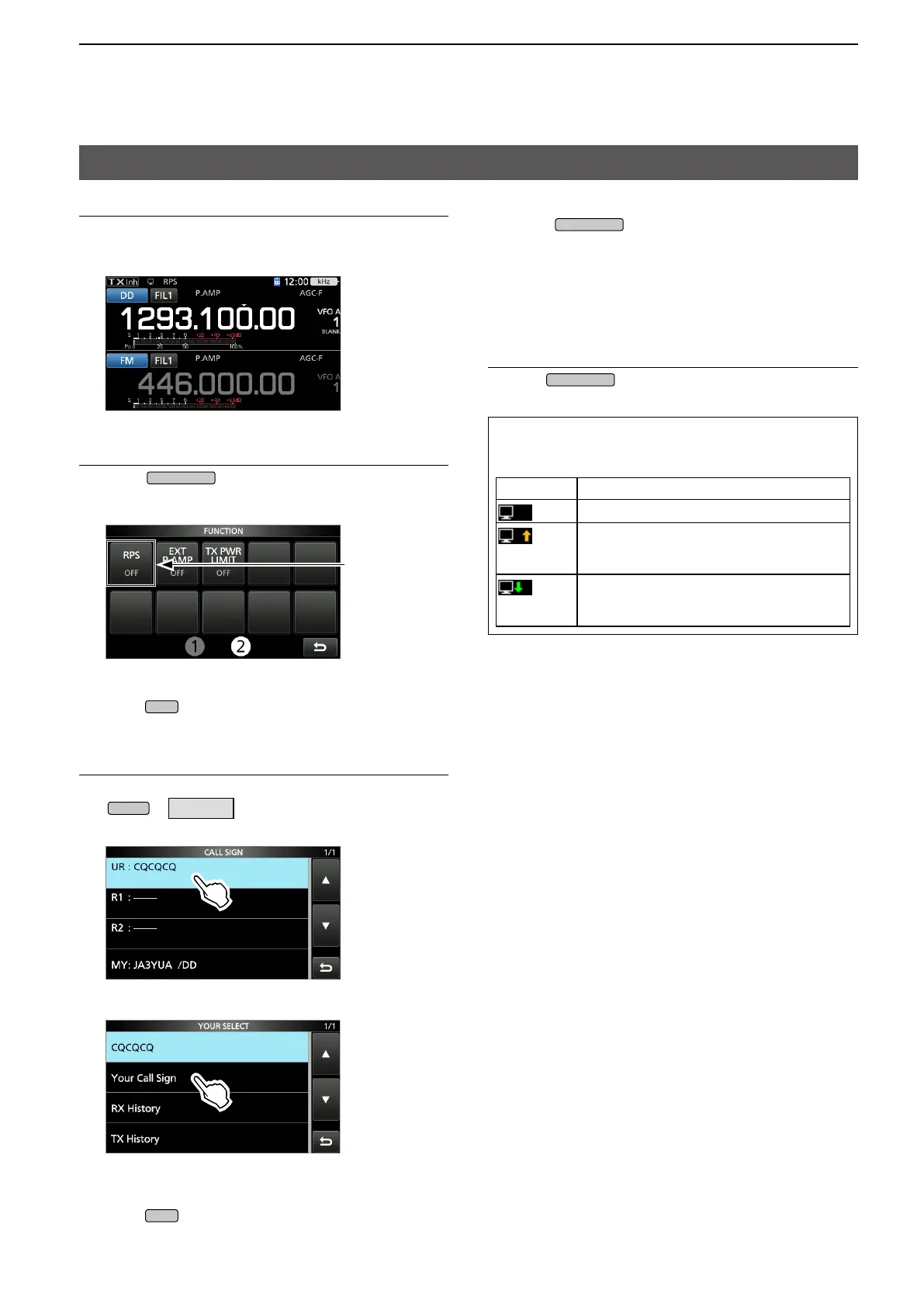

12. DD MODE OPERATIONS
Communication status indication
The communication status in the DD mode
operation is displayed.
Indication Status
Stand-by
Data receiving
L The received data is output to the PC.
[TX/RX] lights green.
Data sending
L The IC-9700 is transmitting data. [TX/
RX] lights red.
DD mode operation without a repeater
1. Set the frequency and mode
1. Set the operating frequency in the VFO mode.
(Example: 1293.100 MHz)
2. Select the DD mode.
2. Set the DD repeater simplex mode to OFF
1. Push
FUNCTION
.
2. Touch (2) to change the screen page.
3. Confirm that [RPS] is set to “OFF.”
Conrm
• Each touch toggles the DD repeater simplex mode
ON or OFF.
4. Push
EXIT
several times to close the FUNCTION
screen.
3. Set the call sign
1. Display the CALL SIGN screen.
MENU
»
(2) > CS
2. Touch [UR].
L Touch [UR] for 1 second, to directly enter the call sign.
3. Touch [Your Call Sign].
4. Touch Your Call Sign, then find and touch the call
sign of the station that you want to contact.
5. Push
EXIT
several times to close the CALL SIGN
screen.
6. 4. Cancel transmit inhibit and send the data
1. Push
TRANSMIT
to set [TX INHIBIT] to “OFF.”
2. Confirm that you can find the other station’s
shared folder on your PC.
3. Open the shared folder.
4. Drag and drop, or copy and paste the desired file
on to your folder.
5. After the DD mode operation
z Push
TRANSMIT
to set [TX INHIBIT] to “ON.”

Icom IC-9700 Specifications

General

Receiver Type	Triple conversion superheterodyne
Display	4.3 inch color TFT touch screen
Type	VHF/UHF/1.2GHz All Mode Transceiver
Receiver System	Triple conversion superheterodyne
D-STAR	Yes
Antenna Impedance	50 ohms
Power Supply	13.8V DC ±15%
Frequency Range	144-146 MHz, 430-440 MHz, 1240-1300 MHz
Mode	FM, SSB, CW, AM
Antenna Connector	2m/70cm: SO-239, 23cm: Type-N
Dimensions	240 x 94 x 238 mm
Weight	Approx. 4.7 kg
RF Power Output	2m/70cm: 100W, 23cm: 10W
GPS	Yes (Internal)
Sensitivity	0.18 μV (FM)
